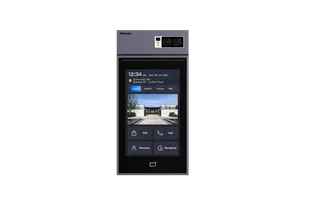

Android Door Phone S539-Standard-Space-Grey

Category: IP Video Intercom
Brand: Akuvox
Model: S539
Colour: Grey
Camera: 5 MP
Display: 10" LCD
Face Recognition
PIN Keypad
Relays: 2
Material: Aluminium
RFID: MIFARE, NFC
Connectivity: Integrated BLE
Interface: RS-485, Wiegand
Protocol: SIP
Protection Class: IP66
Power Supply: 12 V DC, PoE
Model Codes: 00656P11

General Specifications
Front Panel: Aluminium
Display: 10-inch IPS LCD
Main Camera: 5 MP, with Starlight technology
Light Sensor: Supported
Motion Sensor: Supported
ToF Sensor: Supported
Wiegand Port: Supported
RS485 Port: Supported
Output: Supported
RF Card Reader: 13.56 MHz and 125 kHz
Output Relays: 3
Inputs: 3
Microphones: 2
Speakers: 2
Reset Button: 1
BLE (Bluetooth Low Energy): Supported
Ethernet Port: 1 × RJ45, 10/100 Mbps adaptive
PoE: IEEE 802.3at PoE+
Power Supply: DC 12 V / 3 A or DC 24 V / 1.5 A
Protection Class: IP66 and IK08
Installation: Flush-mount or surface-mount
Flush-mount Dimensions: 363.5 × 179.8 × 64 mm
Surface-mount Dimensions: 367.5 × 183 × 35.5 mm
Operating Humidity: 10–90%
Operating Temperature: -30 °C to +55 °C
Storage Temperature: -30 °C to +70 °C
Audio
SIP: v1 (RFC2543), v2 (RFC3261)
Narrowband Audio Codecs: G.711a, G.711μ, G.729
Wideband Audio Codec: G.722
DTMF: In-band, Out-of-band (RFC2833), SIP INFO
Echo Cancellation
Voice Activity Detection (VAD)
Comfort Noise Generator (CNG)
Video
Sensor: 1/2.7" CMOS (main camera)
Supported Resolutions: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video Codec: H.264
Video Technology: HDR
Maximum Resolution: up to 1920 × 1080
Maximum Frame Rate: 1080p @ 30 fps
Viewing Angle: 120° (horizontal) / 72° (vertical)
Compatibility with third-party video systems, such as NVR recorders
Networking and Protocols
Supported Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Access Functions
Android OS for third-party applications and customization
Individual relay control via DTMF tones
Multi-authentication opening: face recognition, card, PIN code, BLE and QR code
Always-on camera
Automatic night mode with LED illumination
White Balance: Automatic
Minimum Illumination: 0.1 lux
Installation and Maintenance
Auto-provisioning
Web-based management portal
Web-based packet capture
Configuration backup and restore
Event log export
Access table export and import
Firmware update
System logs (including door access logs)
