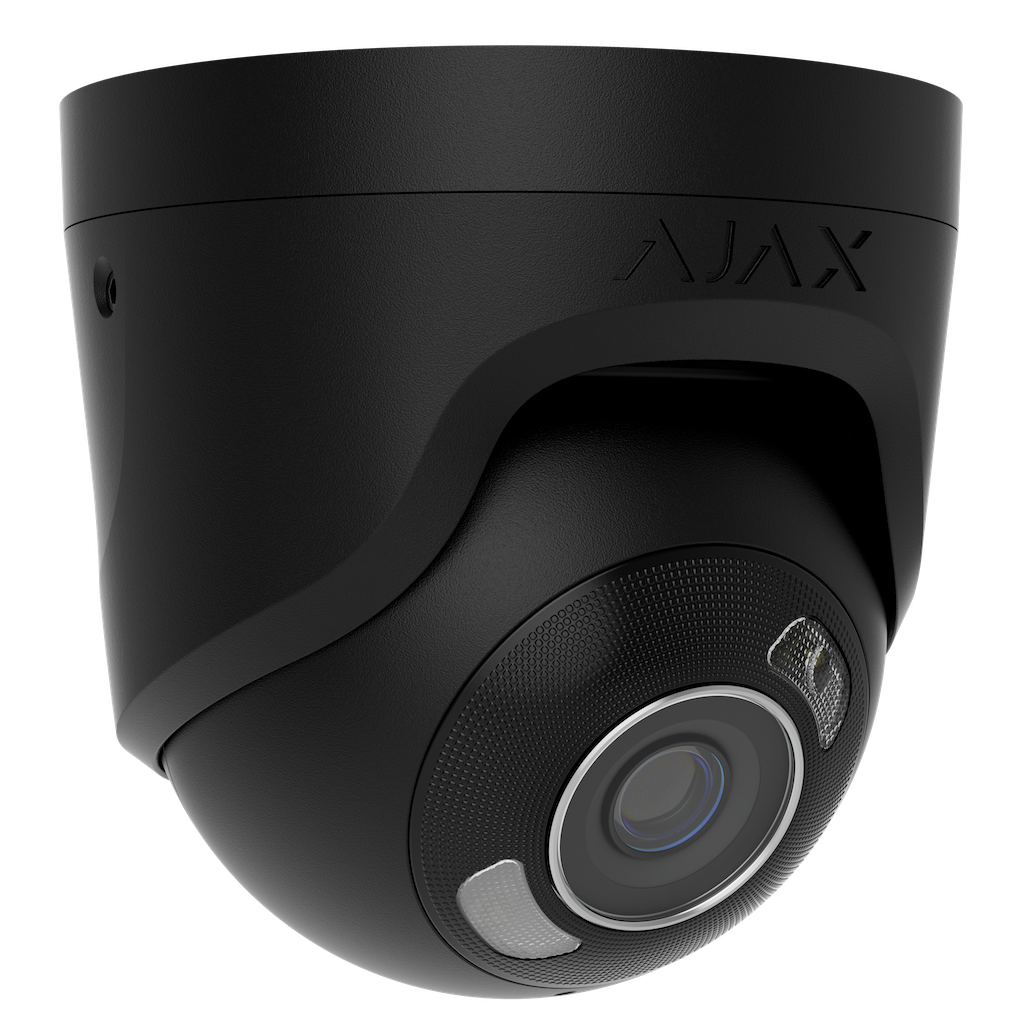

Ajax TurretCam HL (5 Mp/4 mm), black

TurretCam HL — Overview

TurretCam HL is a compact IP security camera for indoor and outdoor use, suitable for homes, commercial premises and industrial installations.

Thanks to its hybrid illumination technology, which automatically switches between infrared and white light, this camera delivers crystal-clear images even in low light and at night.

Key features:

• Hybrid illumination: Automatically switches from infrared to white light based on object or motion detection.

• Full-colour image: The camera delivers full-colour footage that helps identify key details such as clothing, vehicle colour or other important features.

• Motion and object detection: Fewer false alarms, as the camera detects and records only relevant events.

• Excellent visibility at night and in low light: High-quality images at night and in low light, giving you peace of mind around the clock.

• Deterrent effect: The sudden activation of white light can act as an effective warning and deter intruders.

Flexible installation and control

The TurretCam HL camera is easy to install and manage. It can be controlled both on site and remotely via the Ajax apps. All recorded data is available on your chosen device and in an intuitive virtual video wall for quick monitoring of premises and events.

Recording is done either to an internal microSD card (32–256 GB, V30 class or faster recommended) or to an NVR on the network. The video stream is transmitted over a 100 Mbps Ethernet connection, and the camera supports standards such as ONVIF and RTSP, so it can be integrated into various video management systems (VMS), including third-party servers. TurretCam HL features a rugged metal housing (IP65 / IK08) that protects against dust, rain and tampering, making the camera suitable for outdoor use and exposed or easily accessible mounting locations.

---

Technical specifications

Parameter	TurretCam HL (versions: 5 MP / 8 MP, depending on model)
Sensor type / resolution	5 MP CMOS (2880 × 1620) or 8 MP CMOS 1/2.8 (4K → 3840 × 2160)
Lens focal length	2.8 mm or 4.0 mm (fixed)
Field of view (FOV)	2.8 mm: ~110° horizontal, 4 mm: ~85°-75° depending on model
Video recording format / compression	H.264 and H.265
Frame rate (FPS)	up to 25 fps
Illumination / night vision	IR LED + white LED (hybrid), maximum illumination range up to approx. 50 m, 0.005lx
Object detection / analytics	AI-based object recognition (people, animals, vehicles) + motion detection
Storage	microSD card (32–256 GB, V30 recommended). Alternative: network NVR
Network connection	RJ-45 Ethernet 10/100 Mbps; protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, ONVIF (Profile S/T)
Audio	Built-in microphone; audio codecs G.711, G.726, G.722, etc.
Housing / protection rating	Metal, IP65 dust- and waterproof + IK08 vandal resistance
Access / integration	Supports ONVIF/RTSP — can be integrated with third-party VMS (e.g. Milestone, Genetec, Axxon, Digifort)

More than just video surveillance

A camera with AI support.
Ajax cameras offer AI-based object detection for efficient event recording and archiving. Users can configure recording to suit their needs, from continuous recording to recording triggered by motion or AI-detected events. These settings help capture critical events, such as a vehicle entering a car park or a person moving in a restricted area. This reduces unnecessary footage and makes reviewing recordings easier.
AI processing takes place directly on the camera, so no additional devices or subscriptions are required.
Users and security staff can easily monitor premises from their smartphones and receive instant notifications when motion is detected – no special security training required.  Your browser does not support the video tag. Customisable video wall on smartphone and PC
The cameras can be managed both on site and remotely using the Ajax mobile and desktop apps or a local video management system (VMS). All visual data is available in a neatly organised virtual video wall. The video wall tab brings together the latest clips from the cameras, providing a complete overview of the monitored premises. Users can rearrange the sections to suit their monitoring needs. Your browser does not support the video tag. Full-colour visibility even in the dark
The hybrid illumination of BulletCam HL cameras automatically switches between infrared and white light based on object or motion detection. This ensures high image quality in low light and at night. The feature delivers full-colour footage that helps identify clothing, vehicle colour or other important details. The sudden white light can also act as a deterrent, warning intruders that they have been spotted. Your browser does not support the video tag. Datasheet: TurretCam HL all models Manufacturer's website: TurretCam HL all models User manual (EN): TurretCam HL
