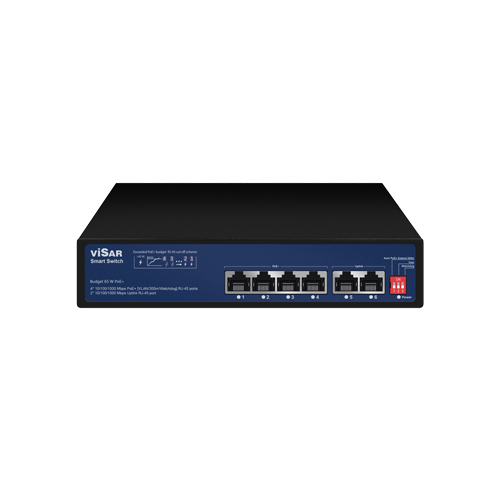

VSS W04POE2 4×100 + 2×100 PoE Switch

VSS W04POE2 PoE Switch

Description

The VSS W04POE2 is a 4-port 100M PoE switch with 4 × 10/100M PoE ports and 2 × 10/100M uplink RJ45 ports. Ports 1–4 support the IEEE802.3af/at standard, delivering up to 30 W per port, with a total PoE budget of 60 W.

The switch offers the following AI features:

• AI Extend – 300 m long-range mode

• AI VLAN – port isolation

• AI PoE Watchdog – automatic camera reboot

• Auto Speed Change – automatic speed adjustment

Suitable for IP cameras, wireless access points, VoIP phones, door intercoms and other PoE-powered devices. Metal housing, 4 kV lightning protection, IP30 rating and fanless design.

Ports

• Fixed ports: 4 × 10/100M PoE + 2 × 10/100M uplink RJ45

• PoE ports: 1–4 support IEEE802.3af/at

• Max. power per port: 30 W (15.4 W average)

• Total PoE budget: 60 W (52 VDC), optional 120 W

• PoE pin assignment: 1/2 (+), 3/6 (-)

AI features

• E – Extend: up to 300 m, single port limited to 10 Mbps

• V – VLAN: isolation of ports 1–4

• D – PoE Watchdog: automatic camera recovery

Network protocols

• IEEE802.3 10BASE-T

• IEEE802.3i 10Base-T

• IEEE802.3u 100Base-TX

• IEEE802.3x

Performance

• Auto features: 10/100Base-T(X), MDI/MDI-X, full/half duplex

• Forwarding mode: Store and Forward

• Switching capacity: 1.2 Gbps

• MAC table: 1K

• Buffer size: 768 KB

Twisted-pair transmission

• 10BASE-T: Cat5 up to 250 m

• 100BASE-TX: Cat5 or better up to 100 m

Power

• Power input: external 52VDC power adapter (60 W)

• Power consumption: standby <2 W; full load <60 W / 120 W

LED indicators

• PWR: green

• Network (1–4): Link/Act (green)

• Network (5–6): Link/Act (green)

• PoE: orange

Environment

• Operating conditions: -20°C … +55°C; 5%–90% RH

• Storage: -40°C … +75°C; 5%–95% RH

Protection

• ESD: ±8 kV contact, ±15 kV air discharge

• Surge: CM ±4 kV / DM ±2 kV, port ±4 kV

• Protection rating: IP30

Physical

• Dimensions: 127 × 97 × 28 mm

• Net / gross weight: <0.8 kg / <1.2 kg

• Mounting: desktop or wall

Certifications

CCC, CE, CE/LVD EN60950, FCC Part 15 Class B, RoHS

In the box

• 1 × VSS W04POE2 PoE switch

• 1 × 60 W power adapter

• 1 × User manual

Datasheet: VSS W04POE2 Manufacturer's website: VSS W04POE2
