U-PROX WIREPORT radio expansion module for 2-wire zone
U-PROX Wireport is a wireless input module that adds support for wired devices to the U-PROX security system
31,72€
25,58 € excl. VAT
Price includes VAT · parcel locker delivery 2,55 € · worldwide delivery with DHL Express
Ask about availabilityWe check availability and delivery time with the supplier – we reply within one business day.
Buying several or need a complete solution? Request a project price →
Out of stock. Ask about availability and delivery time – we reply within one business day. Request a quote →
Sarnased tooted, mis on kohe saadaval
Wireless Power Relay DS-PM1-O1H-WE max 230V 13A35,02 €In stock
Power module DS-PM1-D 8-24VDC up to 2A22,28 €In stock
I/O Expander DS-PM1-I1-WE One with Input 868MHz 2-way Wireless40,72 €In stock
Wireless Remote DS-PKF1-WE(B) 2-way 868MHz White29,77 €In stock- Out of stock
- 14-day returns
- Warranty 24 months
- Secure payment
Is this right for you?A specialist will help you choose – camera, recorder and installation.
U-PROX WIREPORT

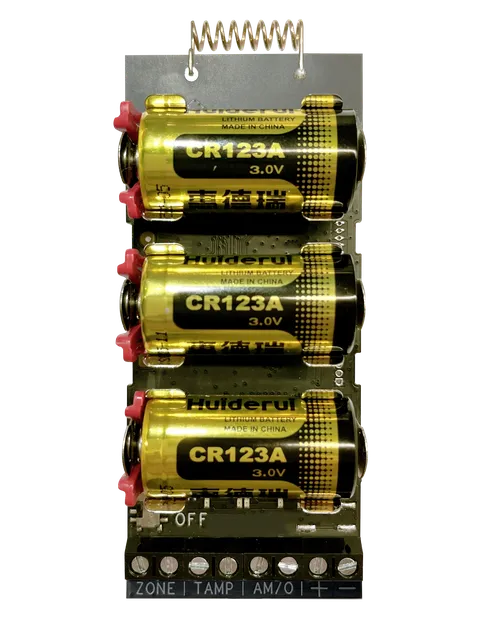

U-PROX Wireport is a wireless module for connecting wired detectors, IR beams and other wired equipment to a U-PROX security control panel. It acts as a bridge module, receiving wireless signals from the security system and relaying events from wired detectors to the wireless network for fast and secure communication. The device is configured via the U-PROX Installer mobile app and offers three separate input channels and a power output for supplying connected devices.
Key features:
-
Connects wired detectors to the U-PROX wireless system.
-
Three separate inputs (ALM1, ALM2 and TMP).
-
Regulated 3 V power output up to 50 mA.
-
Powered by three CR123A batteries, with up to 5 years of battery life under low load.
-
Secure, encrypted two-way wireless communication and tamper detection.
-
Suitable for indoor use, operating temperature range –10 °C…+55 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| Device type | Wired input module for the U-PROX security system |
| Function | Connects wired detectors to the U-PROX wireless network |
| Inputs | 3 × ALM1, ALM2 (alarm), TMP (tamper) |
| Power output | 3 V, max. 50 mA |
| Power supply | 3 × CR123A lithium batteries (pre-installed) |
| Battery life | Up to ~5 years (with two low-current detectors) |
| Radio frequency (EU/Region 1) | 868.0…868.6 MHz; 20 mW, up to 4800 m in open space |
| Encryption and security | Secure 256-bit two-way communication + tamper detection |
| Operating temperature | –10 °C to +55 °C |
| Permissible humidity | ≤ 75 % |
| Environmental class | II (EN 50131-1) |
| Security grade | 2 |
| Dimensions (L × W × H) | 89.7 × 38.8 × 20.5 mm |
| Weight | 0.34 kg |
| Package contents | U-PROX Wireport device, 3 × CR123A batteries (installed), quick start guide |
| Product code | K000177 |
|---|---|
| Manufacturer code | 4820261370478-1 |
| Brand | U-PROX |
| Condition | New |
| Warranty | 24 months |
| Manufacturer code | 4820261370478-1 |
