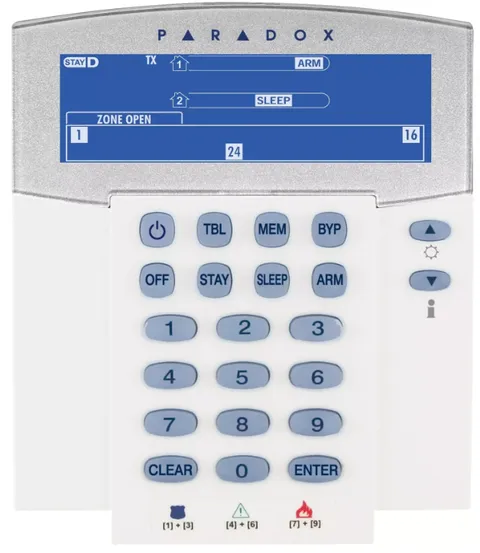

Keypad K38 LCD wireless 32-zone116,41 €In stock
SECOLink KM24G LCD keypad
The SECOLINK KM24G is a keypad with a graphic LCD display
110,36€
89,00 € excl. VAT
Price includes VAT · worldwide delivery with DHL Express
Ask about availabilityWe check availability and delivery time with the supplier – we reply within one business day.
Buying several or need a complete solution? Request a project price →
Out of stock. Ask about availability and delivery time – we reply within one business day. Request a quote →
Sarnased tooted, mis on kohe saadaval
Keypad INT-KLCD-W LCD white137,66 €In stock
Touchscreen keypad K656 LCD135,21 €In stock
LCD keypad INT-KLCDl-BL blue light132,36 €In stock
Keypad K38 LCD wireless 32-zone116,41 €In stock- 14-day returns
- Warranty 24 months
- Secure payment
- Expert help choosing
- EU merchant, no customs duties
- Reviews on Trustpilot
Is this right for you?A specialist will help you choose – camera, recorder and installation.
SECOLink KM24G
The SECOLINK KM24G is a keypad with a graphic LCD display designed for use with SECOLINK alarm systems, including systems supporting up to 64 zones. The keypad provides system control and event log viewing via an intuitive menu, clearly displaying zone status and messages. The KM24G features a built-in temperature sensor and communicates with the control panel via a secure KRBUS data bus. Via the USB interface, the keypad can be connected to a computer for configuration or firmware updates.
Technical specifications
| Parameter / feature | KM24G value / description |
|---|---|
| Product | LCD keypad for alarm systems |
| Compatibility | SECOLINK control panels (up to 64 zones) |
| Display type | Graphic LCD, 240 × 120 pixels |
| Wired zones (built-in) | 2 |
| Built-in PGM output | 1 (open collector, up to 15 mA) |
| Temperature measurement | Yes |
| Number of keys | 24 |
| Programmable Fast Keys (F‑Keys) | 32 |
| Data bus protocol | KRBUS |
| Supply voltage | 9–14 V DC |
| Voltage measurement at keypad | Yes |
| Current consumption | ~80 mA (backlight on), < 68 mA (backlight off) |
| Built-in audible signalling | Micro speaker |
| Backlight colour | Blue (display and keypad) |
| Max. cable length to CP | 300 m |
| USB interface | USB mini‑B (for configuration and updates) |
| Environmental certifications | RoHS |
| Operating temperature | 0 °C to +50 °C |
| Dimensions (W × H) | ~92 × 134 mm |
| Product code | K000545 |
|---|---|
| Manufacturer code | SECOKM24G |
| Brand | China |
| Condition | New |
| Warranty | 24 months |
