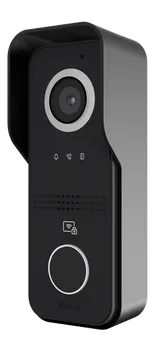

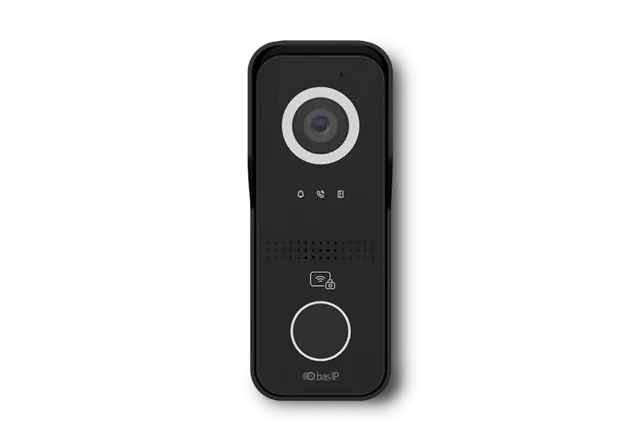

AV-06M intercom door station, black, BAS-IP

AV-06M one-button intercom door station, black

The BAS-IP AV-06M is a stylish, compact one-button outdoor panel designed for seamless video communication at private house entrances or front doors. Despite its slim design, the panel features a Mifare card reader, a high-quality camera, a status LED indicator and reliable access control functions.

The device supports multiple identification methods, including access cards, QR codes, vehicle number plates and remote control from an indoor monitor. With the BAS-IP SH-12 accessory, the AV-06M can also be connected to external keypads or additional card readers, increasing its flexibility and functionality.

Specifications:

Panel type: private house, office
Housing: plastic Protection rating: IP65 Impact resistance: IK06 Operating temperature: −40 °C to +65 °C Dimensions: 52 × 137 × 28 mm Colours: black, silver Mounting: surface-mounted Camera sensor: 1/2.8″ Resolution: 2 MP Video: 1080p (1280 × 720), H.264 Main Profile Viewing angle: 110° horizontal Light sensitivity: 0.01 lux Night illumination: 12 LEDs Power supply: PoE or +12 V DC, Wi-Fi: 2.4GHz (IEEE 802.11 n) Authentication methods: MIFARE cards (Ultralight, Ultralight Ev1, Light ID, Standard, Classic (1K/4K), Classic EV1 (1K/4K), DESFire Light (read-only UID, 4 bytes), DESFire Ev1 (read-only UID, 4 bytes)), NFC (ISO 14443).

Datasheet: AV-06M

Manufacturer's page: - AV-06M BAS-IP
