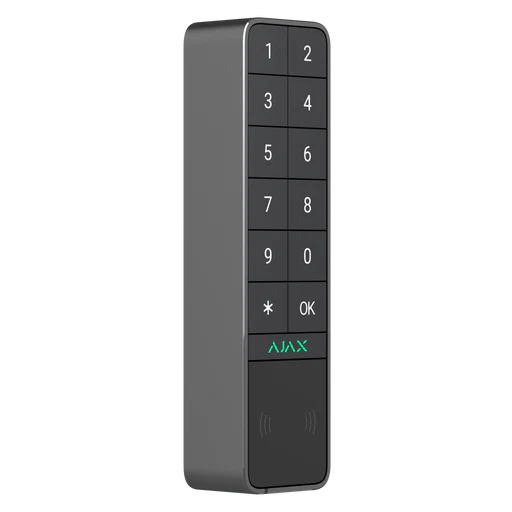

Ajax KeyPad Outdoor Jeweller, Graphite

Ajax KeyPad Outdoor Jeweller, Graphite

Ajax KeyPad Outdoor Jeweller is a wireless keypad for controlling an Ajax security system indoors or outdoors. It lets users arm and disarm the system, activate Night Mode, control selected groups, and run automation scenarios after secure authentication.

Main features

• Secure access by code, Pass card, Tag key fob or smartphone via Bluetooth
• Supports up to 200 Pass/Tag devices, up to 200 smartphones and up to 200 personal codes
• Duress code support for silent alarm activation
• Group and Night Mode control for flexible site security
• Can trigger automation devices such as gates, garage doors or lighting after authentication
• Weather-resistant IP66 housing for outdoor or indoor installation

Technical details

• Jeweller encrypted wireless communication
• Wireless range up to 1,700 m in open space
• Powered by 2 × CR123A pre-installed batteries
• Optional external power input: 10.5–14 V DC, up to 1 A
• Battery life up to approximately 3 years depending on use
• Operating temperature: -25 °C to +60 °C
• Dimensions: 170 × 45 × 31.5 mm; weight 258 g

The graphite KeyPad Outdoor Jeweller is suitable for entrances, gates, garages, offices and other locations where secure, convenient access control is needed.
