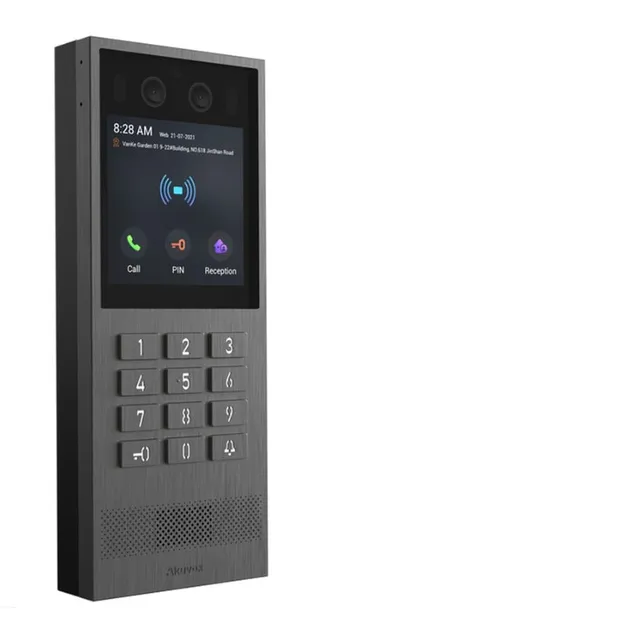

IP Video Door Station X912K-Tarnish-Standard 4" LCD 2MP PoE Grey

Category: IP video door phone
Brand: Akuvox
Model: X912K
Colour: Grey
Camera: 2 MP
Display: 4″ LCD
Face recognition
PIN keypad
Relays: 2
Protection ratings: IK10, IP65
RFID: MIFARE, NFC
Connectivity: Integrated BLE (Bluetooth Low Energy)
Protocol: SIP
Power: 12 V DC, PoE
Model code: 00856P11

General data
Microphones: 2
Speaker: 1
Power output: 12 V / 1 A (max.)
Ethernet port: RJ45, 10/100 Mbps adaptive
Power over Ethernet (PoE): IEEE 802.3at
Power input: 12 V DC connector (when PoE+ is not used)
Protection rating: IP65
Impact protection rating: IK08
Installation: wall or flush mount
Dimensions (H × W × D): 234 × 94.5 × 34 mm
Operating humidity: 10–90%
Operating temperature: -20 °C to +60 °C
Storage temperature: -40 °C to +70 °C
Audio
SIP protocol: SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codecs: G.711a, G.711μ
Wideband audio codec: G.722
DTMF: In-band, Out-of-band DTMF (RFC2833), SIP INFO
Audio features:
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
Video
Image sensor: 1/2.8″ CMOS (main camera)
Supported resolutions: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264
Video technology: HDR
Maximum video resolution: up to 1920 × 1080
Maximum frame rate: 1080p @ 30 fps
Viewing angle: 125° (horizontal) / 65° (vertical)
Compatibility with third-party video systems: NVRs and other video systems
Access features
Individual relay control via DTMF tones
Multiple authentication methods for unlocking:
face recognition
EM card
MIFARE card
PIN code
QR code
BLE (Bluetooth Low Energy)
Always-on camera
White balance: automatic
Minimum illumination: 0.1 lux
User and credential capacity
Number of users: up to 5000
Face templates: up to 5000
Number of cards: up to 25,000
Number of PIN codes: up to 5000
Supported card types:
EM Card
MIFARE Card
DesFire Card (EV1 / EV2 / EV3)
Networking and protocols
Supported protocols: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Management and maintenance
Auto provisioning
Web-based management portal
Web-based Packet Capture
Configuration backup and restore
Event log export
Access table export and import
Firmware upgrade
System logs, including door access logs
