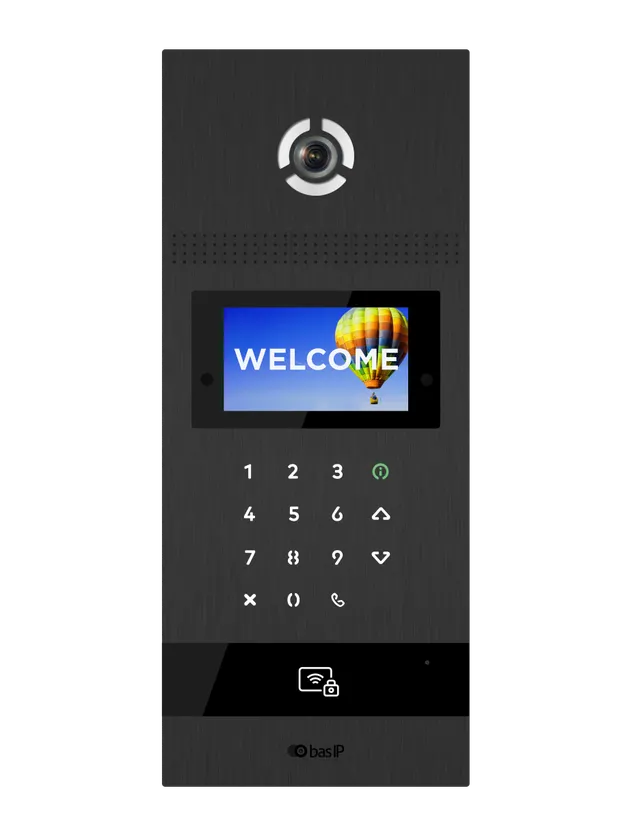

AA-12FBI Intercom Entry Panel with Face Recognition, Black, BAS-IP

AA-12FBI professional call panel with facial recognition, black

This outdoor panel designed for multi-apartment buildings combines modern appearance and practical functions. The stylish design fits well in apartment buildings, small offices and private houses.

The panel is available in three color options:

• gold
• silver
• black

The device supports BAS-IP UKEY mobile access and enables direct calls to both indoor monitors and concierge.

One of the panel’s most distinctive features is facial recognition.
It works using the camera and infrared sensors integrated into the device, allowing user identification quickly and conveniently.

Additionally, the panel has an output for connecting an induction loop, making it suitable for hearing aid users.

In summary, this is a reliable and well-thought-out solution that provides users with a simple and logical user experience.

Technical specifications:

Panel type: apartment building
Housing: Aluminium
Display: 4.3″ TFT colour screen with backlight
Protection class: IP65
Impact resistance: IK07
Operating temperature: −40 °C to +65 °C
Dimensions: 161 × 382 × 49 mm
Colours: silver, black, gold
Installation: flush-mounted or wall-mounted (separate mounting bracket BR-AA12)
Camera sensor: 1/4″
Resolution: 2 MP
Video: 1080p (1920 × 1080), H.264 Main Profile
Viewing angle: 110° horizontal
Light sensitivity: 0.01 lux
Night lighting: 6 LEDs
Hearing impaired module: separate output for module connection (TRS socket)
Power and energy consumption: 12 V DC, Power consumption: 6.5 W (standby 3.6 W)
Authentication methods: Facial recognition, UKEY mobile access (EM-Marine/ MIFARE®/NFC/Bluetooth), cards and key fobs,
QR code, Guest access link, PIN code BAS-IP mobile applications, via API, License plate recognition (ANPR system),
Integration and interfaces: Wiegand output: 26–128 bit
Open API, SIP P2P support, Link software support.
Supported standards: Mifare® 13.56 MHz (Standard, Ultralight, Classic, Plus, DesFire etc),
NFC, 125 kHz cards (ASK, FSK), BLE
Reading distance: NFC / Mifare / 125 kHz cards: up to 5 cm, BLE: adjustable 10 cm to 10 m
Additional features: Customisable notification sounds, integration with third-party systems, BAS-IP Link software support, SIP P2P, open API for creating integrations, flexible access rule creation, identifier validity management, door lock management configuration.

Product sheet: AA-12FBI

Manufacturer page: AA-12FBI | BAS-IP
