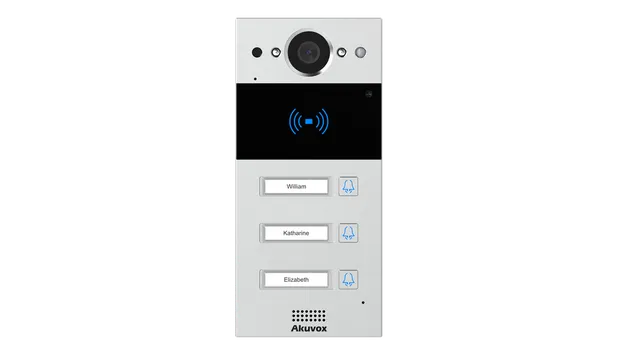

Akuvox R20BX3 Three-Button Intercom Door Station

Compact three button IP video doorbell

Akuvox R20BX3 is a compact SIP video doorbell with three separate call buttons and name plates.

Thanks to its small housing, it is particularly suitable for locations with limited installation space.

The device is designed for outdoor use and is easy to install. Suitable for use in single-family homes, semi-detached houses, apartment buildings and villas.

The device features a wide-angle camera (110° horizontal, 58° vertical), which provides a good visual overview of the entrance area.

Supports bidirectional IP-based audio connection with echo cancellation function.

Power is provided via PoE (IEEE 802.3af), which reduces the need for wiring.

Compatible with SIP and ONVIF standards, enabling connection with various network-based video surveillance systems.

Works with indoor monitor and/or Akuvox mobile application.

Thanks to SIP technology, the indoor unit (monitor or phone handset) can be completely omitted — the call panel calls the user’s phone directly.

No app is needed for this. You only need to conclude a VoIP service contract with your telecom operator.

Akuvox R20B helps increase building security by allowing you to control who enters and identify visitors both visually and verbally.

The R20B series includes different models with up to five call buttons and name plates in total – this allows one device to serve multiple apartments or users.

Product specifications:

• Camera: 2MP, with IR illumination
• Video resolution up to 1920x1080p
• Viewing angle: 110° horizontally, 58° vertically
• Wiegand
• Card reader: 13.56Mhz / 125kHzm, NFC
• Relay output: 2
• Inputs: 2
• LAN port, RJ45, 10/100Mbps
• POE 802.3af
• 12VDC (if POE is not used)
• Dimensions: 185 x 84.5 x 24mm
• Operating temperature: -30°C ~ +60°C
• IP: IP65
• Installation: surface mounted (frame included) / flush mounted (separate frame, not included)
• Package includes: video doorbell, surface wall mount

Product sheet: Akuvox R20BX3 Datasheet

Manufacturer page: R20B – Akuvox
