Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller

Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller

Smart outdoor perimeter motion detector with photo verification

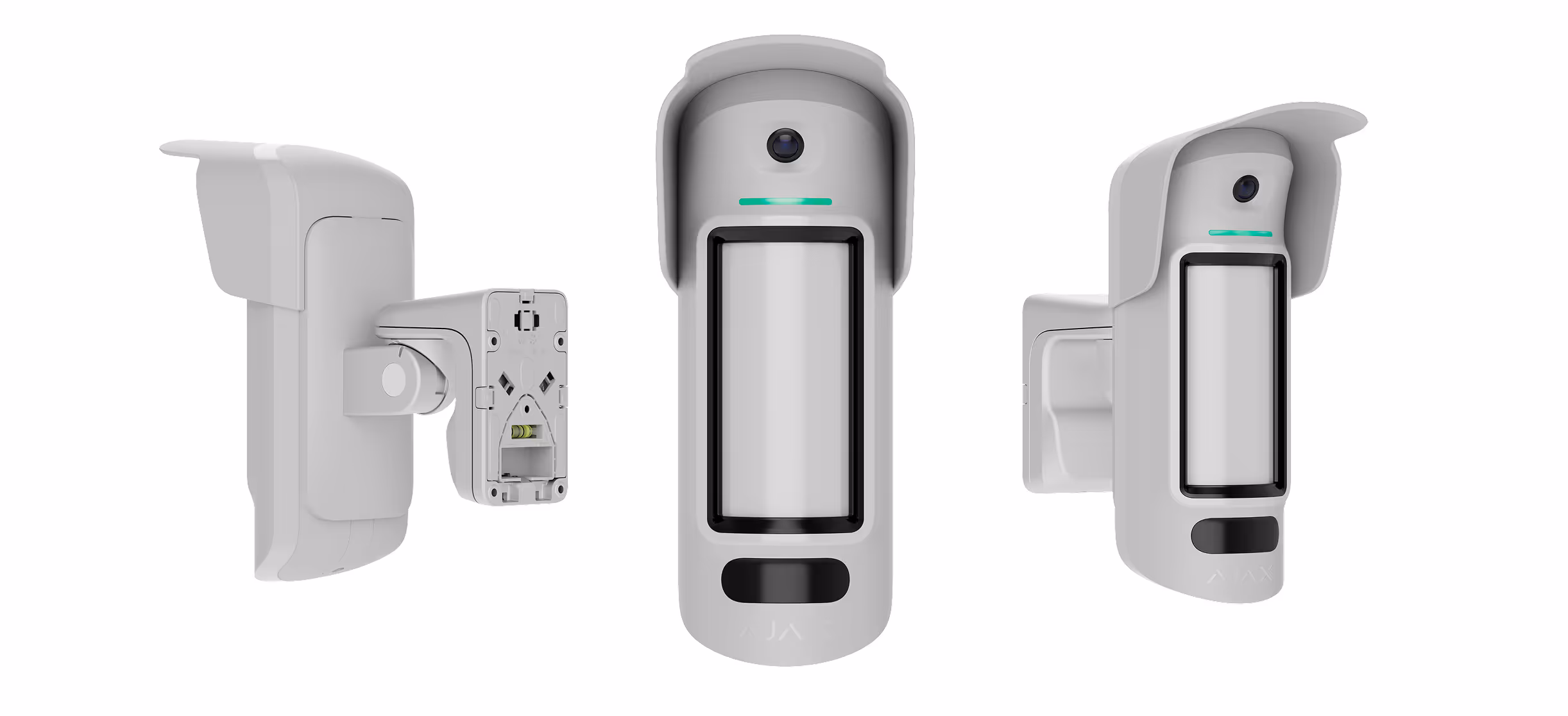

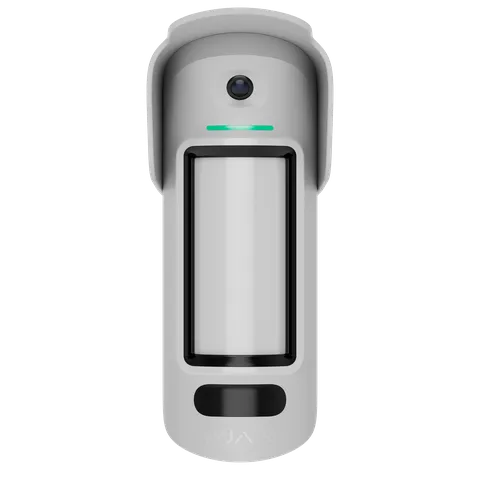

Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller is a professional wireless outdoor curtain motion detector designed to protect long, narrow areas. With two PIR sensors, a K-band microwave radar and a built-in camera, the device detects intruders with high accuracy and instantly sends photos in the event of an alarm, so you can assess the situation quickly.

The detector is mounted at a height of 2–4 metres, making it ideal for protecting building façades, windows, gates, balconies, passageways, fences and industrial sites. The narrow detection zone reduces false alarms and lets you monitor exactly the area you need.

Ajax's proprietary Jeweller and Wings radio protocols ensure a reliable connection even in challenging conditions and enable fast photo delivery to the user and the monitoring station.

Key benefits

• Curtain-type motion detection for protecting narrow outdoor areas
• Built-in camera with photo verification (Photo by Alarm, Photo on Demand, Photo by Scenario)
• Combination of two PIR sensors and a K-band microwave radar reduces false alarms
• Mounting height of 2–4 metres – harder to reach and with a better view
• Detection range of up to 15 metres
• IR illumination for high-quality night-time photos
• Weatherproof IP55 enclosure
• Protection against tampering, masking and manipulation
• Radio communication range of up to 1,700 m in open space
• Up to 3 years of battery life
• Easy setup via the Ajax PRO app

Technical specifications

Suitable applications

• Building façades
• Windows and glass walls
• Gates and fences
• Balconies and terraces
• Narrow passageways
• Driveways
• Warehouses and industrial sites
• Outdoor perimeter of commercial buildings

CurtainCam Outdoor HighMount (PhOD) Jeweller combines accurate motion detection with instant photo verification, making it possible to distinguish real threats from false alarms and respond quickly before an intruder reaches the building. This makes the device an excellent solution for outdoor perimeter protection in professional security systems.
