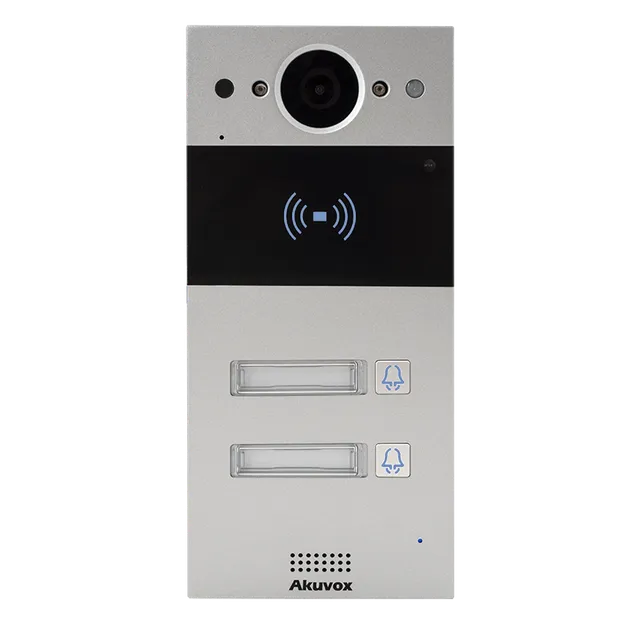

Akuvox R20BX2 Two-Button Intercom Door Station

Compact two button call panel

Akuvox R20BX2 is a compact SIP video doorbell with two separate call buttons with name plates.

Thanks to its small casing, it fits particularly well in locations with limited installation space.

The device is designed for outdoor conditions and is easy to install. Suitable for use in single-family homes, semi-detached houses, apartment buildings and villas.

The device has a wide-angle camera (110° horizontal, 58° vertical), which ensures good visual overview of the entrance area.

Supports bidirectional IP-based audio connection with echo cancellation function.

Power is supplied via PoE (IEEE 802.3af), which reduces wiring requirements.

Compatible with SIP and ONVIF standards, allowing connection to various network-based video surveillance systems.

Works with indoor monitor and/or Akuvox mobile application.

Thanks to SIP technology, the indoor unit (monitor or telephone handset) can be completely omitted — the call panel calls the user’s phone directly.

No app is needed for this. You only need to sign a VoIP service contract with your telecommunications provider.

Akuvox R20B helps increase building security by allowing you to control who enters and identify visitors both visually and verbally.

The R20B series includes various models with up to five call buttons with name plates – this allows you to use one device to serve multiple apartments or users.

Product parameters:

• Camera: 2MP, with IR illumination
• Video resolution up to 1920x1080p
• Viewing angle: 110° horizontally, 58° vertically
• Wiegand
• Card reader: 13.56Mhz / 125kHz, NFC
• Relay output: 2
• Inputs: 2
• LAN port, RJ45, 10/100Mbps
• POE 802.3af
• 12VDC (if PoE is not used)
• Dimensions: 185 x 84.5 x 24mm
• Operating temperature: -30°C ~ +60°C
• IP: IP65
• Installation: surface-mounted (frame included)/ recessed (separate frame, not included)
• Included: video doorbell, surface-mounted wall bracket

Product sheet: Akuvox R20BX2 Datasheet V2.0

Manufacturer page: R20B – Akuvox
