Ajax TurretCam HLVF (5 Mp), white

Ajax TurretCam HLVF (5 Mp), white

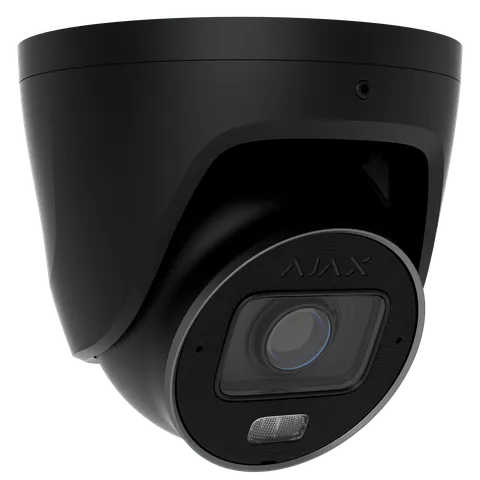

Ajax TurretCam HLVF (5 Mp) is a professional wired 5-megapixel IP camera that combines a motorised varifocal lens, hybrid illumination, True WDR and AI-powered object detection. The camera is designed for both indoor and outdoor use and is well suited to monitoring building perimeters, entrances, car parks, warehouses and other secured areas. Ajax defines the HLVF designation as Hybrid Light + Varifocal: the camera features both hybrid IR/white light illumination and a variable focal length lens.

The motorised varifocal lens lets you adjust the camera's focal length and zoom to tailor the field of view to the specific installation site. This gives installers greater flexibility and allows them to achieve the desired view without adjusting the lens by hand.

5 MP resolution delivers detailed video, while up to 25 frames per second ensures smooth monitoring of fast-moving events. The camera supports H.264 and H.265 video codecs and offers a choice of video resolutions and bitrates.

Hybrid Light technology combines infrared and white LED illumination. In standard night mode the camera uses IR illumination, and when needed the white light switches on to show a detected object in colour even in the dark. Illumination intensity is adjusted automatically to prevent overexposure of nearby objects.

Built-in AI video analytics detects and distinguishes between people, vehicles and animals. Combining motion detection with object detection helps reduce false alarms and keeps the focus on events that matter.

The camera has a built-in microphone as well as audio and alarm inputs/outputs for connecting additional audio devices and external security devices. Video can be recorded to a microSD card of up to 256 GB or to an Ajax NVR. The camera also supports ONVIF integration, allowing it to be connected to other video management systems.

Technical specifications

Parameter	Ajax TurretCam HLVF (5 Mp)
Camera type	Wired IP camera
Resolution	5 Mp
Maximum resolution	2880 × 1620 px
Frame rate	Up to 25 fps
Lens	Motorised varifocal
Focal length	Varifocal
Focus adjustment	Motorised
Day/night	Automatic
Illumination	Hybrid Light – IR + white LED
WDR	True WDR
AI object detection	People, vehicles, animals
Motion detection	Yes
Video codecs	H.264 / H.265
Microphone	Built-in
Audio input/output	Yes
Alarm input/output	Yes
Local storage	microSD up to 256 GB
Recommended microSD	Class 30 / V30 or faster
Network interface	RJ-45 Ethernet
Network speed	10/100 Mbps
ONVIF	Yes
Video protocol	JetSparrow
Power supply	PoE or 12 V DC
PoE	Yes
Installation	Indoor and outdoor
Ingress protection	IP67*
Vandal resistance	IK10*
Recording	microSD / Ajax NVR
Warranty	2 years

* Exact ONVIF profile support may depend on the firmware and integration used; Ajax describes the BulletCam HLVF as an ONVIF-compatible camera.

Key selling point: in Ajax nomenclature, the HLVF designation means the camera features both HL – Hybrid Light and VF – Varifocal, i.e. hybrid illumination plus a variable focal length lens.

Datasheet: TurretCam HLVF, all models Manufacturer's website: TurretCam HLVF, all models User manual (EN): TurretCam HLVF
