U-PROX RELAY AC relay module 230V
U‑PROX Relay AC is a wireless relay module that allows you to conveniently and safely remotely control the power supply of electrical devices (110–250 V AC) within your U‑PROX security system.
90,35€
72,86 € bez PDV-a
Cijena uključuje PDV · Dostava: Hrvatska od 24,62 € · dostava diljem svijeta s DHL Expressom
Upitaj za dostupnostProvjerit ćemo dostupnost i rok isporuke kod dobavljača – odgovaramo unutar jednog radnog dana.
Kupujete više komada ili trebate cjelovito rješenje? Zatražite projektnu cijenu →
Nema na zalihi. Pitajte za dostupnost i rok isporuke – odgovaramo unutar radnog dana. Zatraži ponudu →
Sarnased tooted, mis on kohe saadaval
U-PROX RELAY DC relay module 12V57,72 €Na zalihi
Wireless doorbell 094270 200m LED 80dB white93,41 €Na zalihi- Povrat u 14 dana
- Jamstvo 24 mjeseci
- Sigurno plaćanje
- Stručna pomoć pri odabiru
- Trgovac iz EU-a, bez carine
- Recenzije na Trustpilotu
Je li ovo pravo za Vas?Stručnjak će Vam pomoći pri odabiru – kamera, snimač i ugradnja.

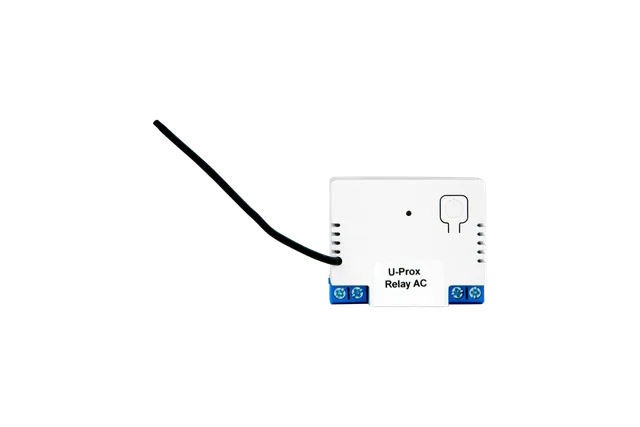

U-PROX RELAY AC
U‑PROX Relay AC is a wireless relay module for remotely switching the mains supply (110–250 V AC) to electrical appliances via the U‑PROX security system. The device is installed in a protective enclosure and provides safe switching and monitoring from the security system control panel or the mobile app. In addition to standard relay functions, it also offers energy monitoring: voltage and current are measured in real time and total energy consumption is recorded for better system diagnostics and efficiency. Secure two-way radio communication and 256‑bit encryption ensure reliable communication and tamper detection.
Technical specifications
| Parameter | Value / description |
|---|---|
| Device | U‑PROX Relay AC – wireless relay module for security systems |
| Application | Remote power control of electrical appliances and energy monitoring |
| Supply voltage | 110 … 250 V AC, 50 … 60 Hz |
| Relay contacts | Neutral (N) and Line (L) – up to 10 A @ 250 V AC maximum |
| Modes | Pulse and trigger (bistable) modes |
| Pulse duration | Adjustable 0.1 … 250 s |
| Radio frequency | ISM band: 868.0 … 868.6 MHz (EU/UA) |
| Communication security | Secure two-way radio communication, 256‑bit encryption, tamper detection |
| Radio range | up to ~4800 m in open space (line of sight) |
| Energy monitoring | Measurement of voltage, instantaneous power and total energy consumption |
| Response delay | Maximum ≤ 5 s |
| Operating temperature | –10 °C … +55 °C |
| Permissible humidity | up to 75 % |
| Environmental class | Class II (EN 50131‑1) |
| Security grade | Grade 2 |
| Dimensions (L×W×H) | 44 × 36 × 19.4 mm |
| Weight | ~55 g |
| LED indicator | Yes – for status indication |
| Package contents | U‑PROX Relay AC device, quick start guide |
| Warranty | 2 years (excluding batteries/power supply) |
| Šifra proizvoda | K000174 |
|---|---|
| Šifra proizvođača | 4820261370393 |
| Marka | U-PROX |
| Stanje | Novo |
| Jamstvo | 24 mjeseci |
