Device identification

• Device name: Shelly Pro 2PM v.1

• Device model: SPSW-202PE16EU

• Device SSID: ShellyPro2PM-XXXXXX

Short description

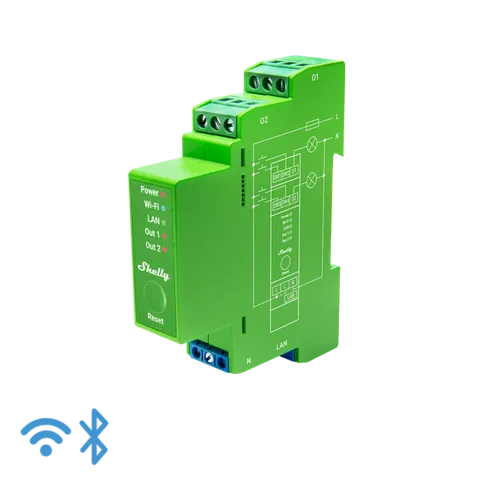

Shelly Pro 2PM is a DIN-rail mounted 2-channel smart switch with power metering. Thanks to the flexibility of the Gen2 firmware and its LAN connectivity, it gives professional installers more solutions to offer end users. The device can work standalone on a local Wi-Fi network or via the cloud with home automation services.

Shelly Pro 2PM can be accessed, controlled and monitored remotely from anywhere with an internet connection, as long as the device is connected to a Wi-Fi router and the internet.

Shelly Pro 2PM has a built-in web interface for monitoring, controlling and configuring the device.

Main applications

• Residential

• MDU (multi-dwelling units – apartments, hotels, etc.)

• Small businesses (offices, shops, restaurants, petrol stations, etc.)

• Government/municipal

• University/college

Integrations

• Google

• Alexa

• Samsung SmartThings

Device electrical interfaces
Inputs

• 2 switch/button inputs on screw terminals: SW1 and SW2

• 2 power supply inputs on screw terminals: 1 N and 1 L

• 2 relay inputs: I1, I2

Outputs

• 2 relay outputs: O1, O2

Ethernet port

• 1 RJ45 connector

⚠WARNING! Only connect or disconnect the LAN cable when the device is powered off! The parts of the cable connector that the user touches must not be made of metal.

Add-on interface

• Shelly proprietary serial interface

⚠WARNING! The add-on interface carries high voltage when the device is powered on!

Connectivity

• Wi-Fi

• Ethernet

• Bluetooth

Safety features

• Overheating protection

• Overvoltage protection

• Overcurrent protection

• Overpower protection

Supported load types

• Resistive (incandescent bulbs, heaters)

• Capacitive (capacitor banks, electronics, motor start capacitors)

• Inductive with RC snubber (LED drivers, transformers, fans, fridges, air conditioners)

User interface
Inputs

• One dome button:

  • Hold for 5 s → reboot

  • Hold for 10 s → factory reset

Outputs

• LED indicators:

  • Power (red): on when power is connected

  • Wi-Fi:

    • Blue → AP mode

    • Red → STA mode, no Wi-Fi network

    • Yellow → STA mode, connected to Wi-Fi, no cloud connection

    • Green → STA mode, connected to both Wi-Fi and Shelly Cloud

    • Flashing red/blue → OTA update in progress

  • LAN (green): LAN connected

  • Out 1 (red): relay 1 closed

  • Out 2 (red): relay 2 closed

Specifications
Physical

• Size (HxWxD): 94×19×69 ±0.5 mm

• Mounting: DIN rail

• Max. screw terminal torque: 0.4 Nm

• Wire cross-section:

  • 0.5–2.5 mm² (green)

  • 0.5–1.5 mm² (blue)

• Wire stripped length:

  • 6–7 mm (green)

  • 5–6 mm (blue)

• Housing material: plastic

• Colour: black

Environmental

• Temperature: -20 °C … +40 °C

• Humidity: 30% … 70% RH

• Max. altitude: 2000 m

Electrical

• Supply voltage AC: 110–240 V

• Supply voltage DC: N/A

• Power consumption: <3 W

• Neutral wire: required

Output circuits

• Max. switching voltage AC: 240 V

• Max. switching voltage DC: N/A

• Max. switching current AC: 16 A per channel, 25 A total

• Max. switching current DC: N/A

Sensors, meters

• Voltmeter (AC): yes

• Ammeter (AC): yes

• Internal temperature sensor: yes

Radio

• RF frequency: 2400–2495 MHz

• Max. RF power: <20 dBm

• Wi-Fi protocol: 802.11 b/g/n

• Wi-Fi range: up to 30 m indoors, up to 50 m outdoors

• Bluetooth protocol: 4.2

• Bluetooth range: up to 10 m indoors, up to 30 m outdoors

MCU

• CPU: ESP32-D0WDQ6

• Flash: 8 MB

Firmware capabilities

• Schedules: 20

• Webhooks (URL actions): 20, with up to 5 URLs each

• Scripting: yes

• MQTT: yes

• CoAP: no

Legend

• I1, I2 – load circuit input terminals

• L – live (110–240 V)

• O1, O2 – load circuit output terminals

• N – neutral

• SW1, SW2 – switch/button inputs

• LAN – RJ45 LAN connector

User manual: Shelly Pro 2PM multilingual printed user and safety guide.pdf Manufacturer's website: Shelly Pro 2PM
