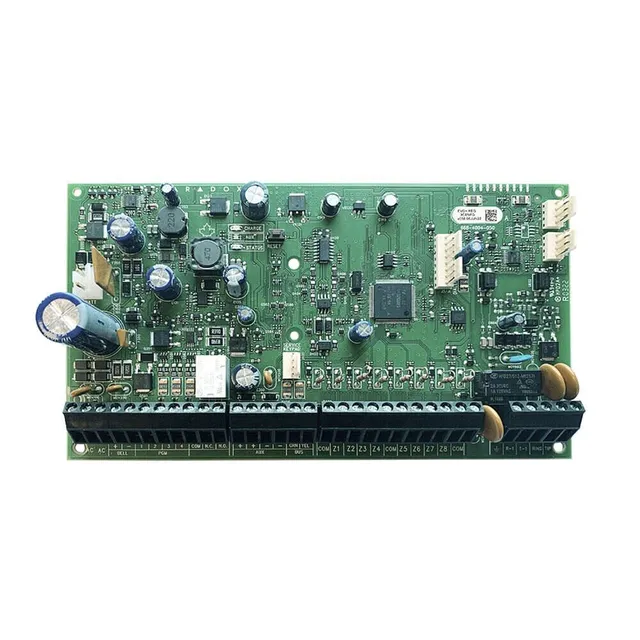

Control panel EVOHD+ 8-192 zones

EVOHD+ Control Panel 8 (up to 192) zones, 5 PGM (up to 250), 8 partitions; 999 user codes; 32 doors; stores up to 3584 events in memory; Expandable: 254 expansion modules; Maximum number of remote controls 999 (RTX3 required); Integrated access control functions; Supports GSM/GPRS/IP150/VDMP3; Power supply 2.5A, 16 Vac 40/75 VA, -10 to 55 °C, GRADE 3, Class II. Works with devices compatible with the EVO192.
EVOHD+ is an enhanced version of the EVOHD with two SERIAL ports that communicate twice as fast as the previous version. SERIAL 1 is the primary channel and SERIAL 2 is the backup channel for event reporting. The + series panels offer a safer and faster firmware upgrade because they keep the previous firmware in memory in case the upgrade should fail. The hardware and power section have been updated and adapted with gel batteries in mind. BUS module management has been changed so that after scanning the modules they are not deleted from the system immediately but placed in quarantine. This ensures that, if necessary, the state prior to the scan can be restored. The EVOHD+ panel has a maximum permitted AUX (power output) current of 2.5A (75VA transformer required) and battery deep-discharge protection.

Features:

192 zones
8 partitions
999 user codes
5 outputs (PGM)
Up to 254 expansion modules can be added
AUX 2.5A max. (requires a 75VA transformer)
Efficient battery charging up to 1.5A
Digital bus line that powers the expansion modules, monitors their status on the line and provides two-way communication with the modules
Easy to add addressable detectors
Integrated tamper (cover contact) monitoring without additional wiring.

PGM options:

Four voltage outputs (1-4) and one 5A relay output (5)
The first output can be configured as a 2-wire smoke detector input
