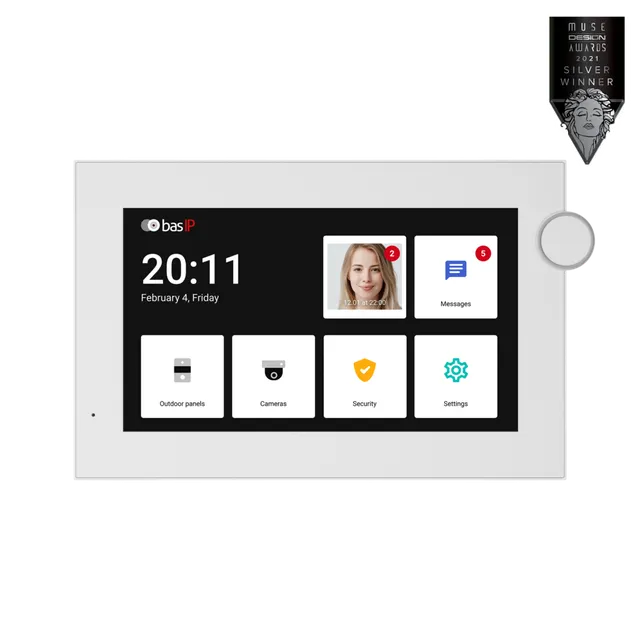

AZ-07LF Intercom Indoor Monitor, White, Android, BAS-IP

AZ-07LF phone indoor monitor, Android, white

AZ-07LF is a 7-inch IPS LCD touchscreen (1024 × 600) IP video phone indoor monitor.
The device supports Wi-Fi connection to the home network and has low power consumption in both operating and standby modes.
The monitor is available in black and white colors and can be installed both horizontally and vertically.
Through the panel, you can control various systems such as lighting, curtains and elevators, and use the auto-answer and message reception function. The user can customize sounds, images, videos and audio files and choose an appropriate standby display or screensaver.
The device supports scheduled Do Not Disturb and silent mode settings and automatically saves photos taken during calls. AZ-07LF allows the use of third-party applications and widgets, and software can be updated via the web interface or the manufacturer’s update server.

Technical specifications

Display: 7″ IPS LCD (capacitive touchscreen)
Operating system: Android 10.0
Screen resolution: 1024 × 600
Built-in camera: none
Wi-Fi: 2.4 GHz (IEEE 802.11b/g/n)
Power: PoE or +12 V DC (power adapter not included)
Power consumption: 6 W, standby 2.5 W
Dimensions: 195 × 127 × 27 mm
Colors: black / white
Housing: plastic
Installation method: wall mounting
Installation options: horizontal or vertical

Network connection: Ethernet 8P8C
Additional interfaces: SD card slot (SDHC)
Memory function: saving photos, videos and audio recordings to SD card
User interface: multilingual graphical user interface and web interface
Number of IP cameras: up to 32 cameras

Number of sounds: 9 selectable melodies
Ability to add MP3 sounds: yes

Intercom type: audio intercom, no built-in camera
Home automation control: lighting / curtains / elevator
Scenes: yes
Auto-answer: yes
Message reception: yes

Multimedia: viewing video, photo and audio files from SD card

Standby mode: yes, scheduled
Screensaver options:

• multi-camera real-time view (up to 4 IP cameras at once)
• clock
• picture frame
• automatic camera tour (up to 16 cameras, scheduled)
• single IP camera real-time image

Do Not Disturb: yes, scheduled
Silent mode: yes, scheduled

Backup of photos taken during calls: yes

Third-party application installation: yes
Third-party widget support: yes

Software update: via web interface, SD card or BAS-IP update server.

Product sheet: AZ-07LF_manual.pdf

Manufacturer page: IP Video Indoor Phone AZ-07LF BAS-IP
