U-PROX Keypad G4 keypad, white

U-PROX Keypad G4

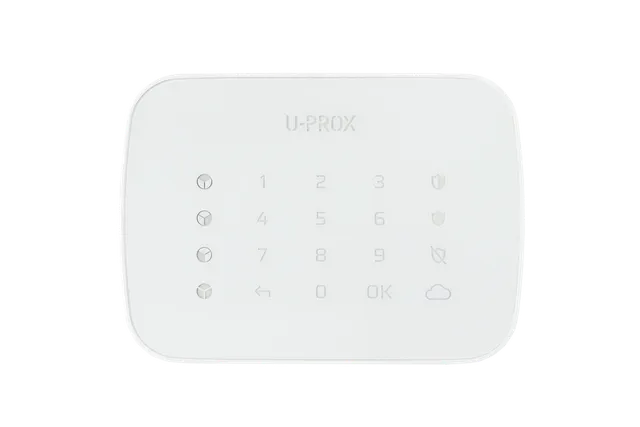

The U-PROX Keypad G4 is a wireless touch keypad (control panel) for operating the U-PROX security system and displaying alarms and device status. It is usually installed near the entrance and communicates with the security system's central control panel by radio at up to 4800 m in open space. The device has a sensitive touch surface, four partition indicators and a set of buttons for various security functions (e.g. arming, disarming, partial arming in "Stay/Night mode", info, cancel, OK and more). The keypad supports 4- to 6-digit user codes and also includes a "duress code", which sends a silent alarm when the user enters this separate code. It is powered by four AAA (LR03) batteries with a battery life of up to ~2 years, depending on use. Communication uses secure two-way radio on the 868 MHz ISM band (or 916.5–917 MHz, depending on the region), with 256-bit encryption and jamming detection.

Technical specifications

Parameter	Value / description
Device	U-PROX Keypad G4 – wireless touch keypad for the U-PROX security system
Functions	Arming, disarming, partial arming, alarm and device status display
Code length	4- to 6-digit user code (standard code and "duress code")
Duress code	Last digit +1, triggers a silent alarm
Partitions	4 partitions
Radio frequency	ISM band: 868.0–868.6 MHz (EU/UA) or 916.5–917 MHz (AU)
Communication range	Up to ~4800 m in open space (line of sight)
Communication	Two-way radio, secure 256-bit encryption, jamming detection
Power supply	3 V (4× AAA LR03 batteries, included)
Battery life	Up to ~2 years of use (on average)
Operating temperature	–10 °C … +55 °C
Operating humidity	Up to ~75%
Dimensions (W×H×D)	167 × 120 × 15 mm
Weight	~250 g
Colours	White or black
Package contents	Keypad, 4× AAA batteries, mounting plate and quick start guide
Warranty	2 years (batteries not covered by the warranty)
Standards	Complies with EN and RED/RoHS directives and EN50131 Grade 2, Environmental Class II
