Ajax NVR HAC (8ch, HDMI) black

Ajax NVR HAC (8ch) black

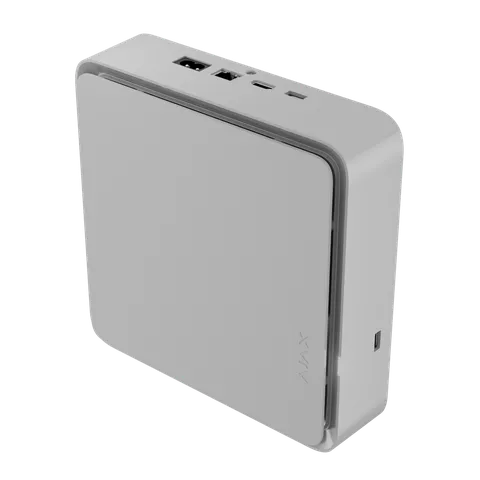

Ajax NVR H series recorder with HDMI output

The NVR H is a network video recorder (NVR) that supports both Ajax's own IP cameras and third-party ONVIF/RTSP cameras. The NVR H records video from all connected cameras to a hard drive of up to 16 TB (hard drive not included). Live footage and the archive can be viewed either on a monitor connected directly via the HDMI output or through the Ajax apps. The device provides full video surveillance management, camera configuration, motion detection, recording export and integration with other video management systems (VMS, ONVIF).

Key features and applications

• Compatible with Ajax IP cameras and third-party ONVIF/RTSP cameras.

• Supports a hard drive of up to 16 TB — suitable for continuous surveillance with large storage requirements.

• Live view and archive: watch real-time or recorded video on an HDMI monitor or in the Ajax app.

• Camera settings, motion detection, recording modes, archive export — all in one system.

• Supports combining feeds from multiple cameras to create a video wall.

• Can be integrated with VMS platforms in larger systems, such as Milestone, Genetec, Axxon or Digifort.

---

Technical specifications — NVR H series

Parameter / feature	NVR H (8-channel) / NVR H (16-channel) / general information
Supported number of cameras	8 or 16 channels (depending on the model)
Supported storage	Hard drive up to 16 TB (not included)
HDMI output	Yes — displays live or archived video on a monitor in real time
USB ports	2 × USB 2.0 (Type-A) — keyboard, mouse or USB flash drive. Up to 500 mA output current per port.
Network interface	Ethernet connection for the Ajax Cloud service
Supported protocols	ONVIF and RTSP for third-party IP cameras + Ajax cameras
Live recording & archive	Real-time viewing, archive recording, export, navigation by timeline and calendar (when a hard drive is installed)
Motion detection	Available — detection on the camera or on the NVR H, with configurable alarm zones and sensitivity
Video wall & PTZ support	Yes — combined view from multiple cameras; supports PTZ camera control with keyboard shortcuts
Video export & authenticity	Recorded videos contain a digital signature that can be verified with the Ajax Media Player software
Installation location	Indoor use only
Number of users	Up to 50 local user accounts (admin/operator) — local viewing also possible without an internet connection

---

What this means for you

The NVR H is a great choice if you want a single system for monitoring, recording and managing video — whether for a home, office or small business. Thanks to its storage capacity and multi-camera support, you can scale your surveillance or security system as your needs grow. The HDMI output makes it easy to connect a monitor, while archive export and video authentication support ensure your recordings are trustworthy. ONVIF support makes the NVR H a flexible solution for cameras from multiple manufacturers too.

Video surveillance — exactly as it should be

The NVR H series makes video surveillance simple and flexible — whether on site at a desk or remotely via the Ajax app. With HDMI and two USB ports, the NVR instantly becomes a fully fledged monitoring station once you connect a display and input devices. After initial setup, on-site video surveillance works even without an internet connection. At the same time, the Ajax mobile and desktop apps let you view videos, change settings and manage access anytime, anywhere.

 Your browser does not support the video tag.

Customisable video wall for simultaneous monitoring

Make surveillance more efficient with a video wall that displays the integrated video streams of all connected devices. Keep every corner of the entire site constantly in view — on an HDMI-connected screen or in the Ajax mobile and desktop apps. Customise the layout to suit your needs so that the most important view is always in focus.
