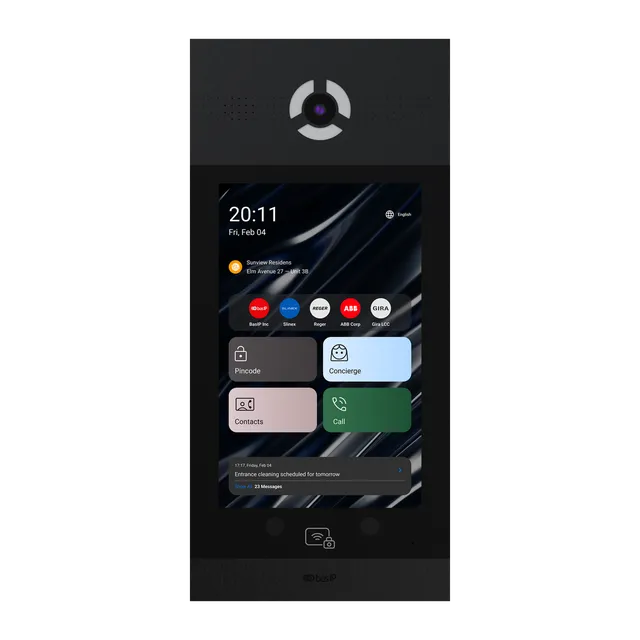

AA-14FBIS Intercom Entry Panel with Face Recognition, Black, BAS-IP

AA-14FBIS professional intercom panel with face recognition, black

BAS-IP AA-14FBIS is a modern and versatile intercom panel that combines technology, user convenience and stylish appearance. It is well suited for both apartment buildings and commercial premises where secure and convenient access is important.

The device provides numerous practical functions for daily use:

• built-in telephone directory that simplifies finding contacts
• concierge call function
• elevator control and call function

Thanks to flexible configuration, the system can be customized according to the object’s needs – whether it’s a smaller building or a larger development.

Additionally, the panel has an induction loop output for connection, making it suitable for hearing aid users as well.

In summary, this is a reliable and well-thought-out solution that provides users with a simple and logical user experience.

Technical specifications:

Panel type: apartment building
Housing: Aluminium
Display: 10.1″ IPS color screen with backlighting and heating
Protection class: IP65
Impact resistance: IK06
Operating temperature: −40 °C to +65 °C
Dimensions: 185 × 400 × 45 mm
Colors: silver, black
Installation: recessed or wall-mounted (separate mounting with BR-AA14)
Camera sensor: 1/4″
Resolution: 2 MP
Video: 1080p (1920 × 1080), H.264 Main Profile
Viewing angle: 110° horizontal
Light sensitivity: 0.01 lux
Night light: 6 LEDs
Hearing aid module: separate output for module connection (TRS socket)
Power and power consumption: standard PoE + or 12 V DC, Power consumption: 6.5 W (3.6 W in standby mode)
Authentication methods: Face recognition, UKEY mobile access, cards and key fobs,
QR code, Guest access link, PIN code BAS-IP mobile applications, via API, License plate recognition (with ANPR system),
Integration and interfaces: Wiegand output: 26–128 bits
Open API, SIP P2P support, Link software support.
Supported standards: Mifare® 13.56 MHz (Standard, Ultralight, Classic, Plus, DesFire etc.),
NFC, 125 kHz cards (ASK, FSK), BLE
Reading range: NFC / Mifare / 125 kHz cards: up to 5 cm, BLE: adjustable 10 cm to 10 m
Additional features: Customizable notification sounds, integration with third-party systems, BAS-IP Link software support, open API for creating integrations, flexible access rule creation, identifier validity management, door lock control settings,
elevator control support (via BAS-IP EVRC-IP module).

Product sheet: AA-14FBIS

Manufacturer page: AA-14FBIS | BAS-IP
