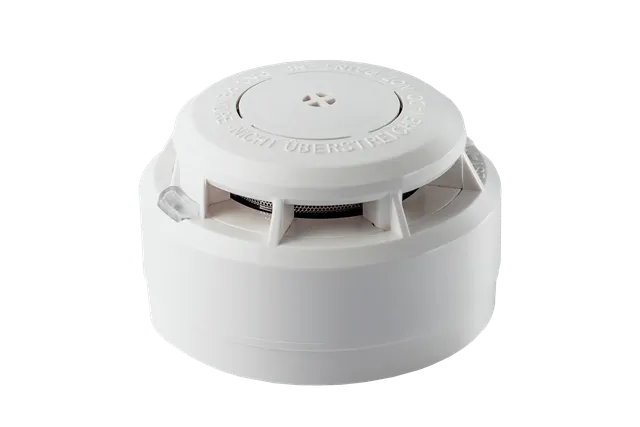

U-PROX SMOKE smoke detector, white

U-PROX SMOKE

U‑PROX Smoke is a wireless optical smoke detector designed as part of the U‑PROX security system for early detection of smoke and fire hazards indoors. The device uses optical detection to respond quickly to smoke and send an alarm notification to the security system, allowing timely rescue and evacuation measures. The detector has a built-in sounder and an LED indicator, and is easy to configure via the U‑PROX Installer mobile app.

Technical Specifications

Parameter	Value / Description
Device	U‑PROX Smoke – wireless optical smoke detector for the U‑PROX security system
Functions	Indoor smoke detection and alarm transmission to the security system
Detection method	Optical smoke sensor
Sensitivity	0.08–0.12 dB/m (under optimal conditions, in cotton smoke)
Sounder	Built-in, ≥ 85 dB (at 3 m)
LED indicator	LED providing visual indication of operating and alarm status
Radio frequency (ISM band)	Europe: 868.0–868.6 MHz
Radio range	Up to ~4,800 m in open space (line of sight)
Communication security	Secure two-way radio communication, 256-bit encryption, tamper detection
Power supply	3 V (2× AAA/LR03 alkaline batteries, included)
Battery life	Up to ~3 years
Operating temperature	–10 °C … +55 °C
Permissible humidity	Up to ~75%
Environmental class	Class II (EN 50131‑1)
Security grade	Grade 2
Dimensions	Ø 80 × 45 mm
Weight	~150 g
Package contents	U‑PROX Smoke detector, 2× AAA batteries, quick start guide
Warranty	~2 years (does not cover batteries)
