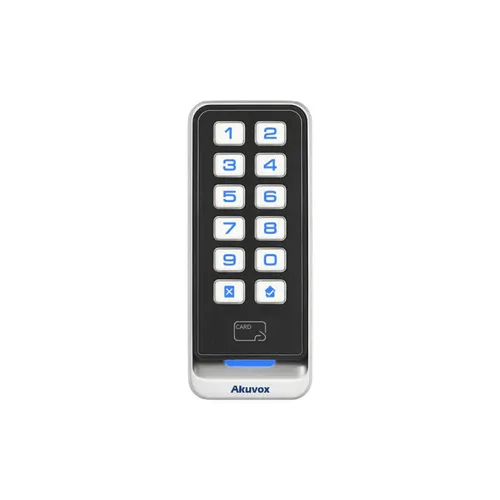

Akuvox ACR-CRM11 Card Reader with Keypad

Akuvox ACR-CRM11: card reader with keypad

Akuvox ACR-CRM11 is an RF card reader with physical buttons. The device uses IC card* technology, offering secure, convenient and easy operation. Built-in high-performance microprocessor and favorable price-to-performance ratio make it suitable for various access control projects.

Technical specifications:

• Dimensions: 138 x 58 x 22 mm

• Front panel: Aluminum

• Card reader: 13.56 MHz and 125 kHz

• Power: 12 V DC

• Wiegand: supported

• Audio signal: 1

• Indicator light: 1

• Operating temperature: -20°C ~ +60°C

• Storage temperature: –20 °C to +80 °C

• Protection class: IP65

• Installation: wall-mounted

*IC card (Integrated Circuit card) is a chip card, not a simple magnetic or ID-number-only RFID card. The card has a microchip that can process data, not just transmit a serial number. The advantages of this technology are:
More secure authentication – the card and reader can exchange encrypted data with each other, which reduces the risk of copying and cloning compared to simple 125 kHz cards.
Multi-standard support – 13.56 MHz technology (e.g. MIFARE Classic / Ultralight / DESFire), and can also support 125 kHz cards in parallel.
Faster and more stable operation – card detection is faster and more reliable, especially in high-traffic access points.
Wider compatibility – better suited for modern access control devices and systems using Wiegand interface.

Data sheet: Datasheet_Akuvox_ACR_CRM11
