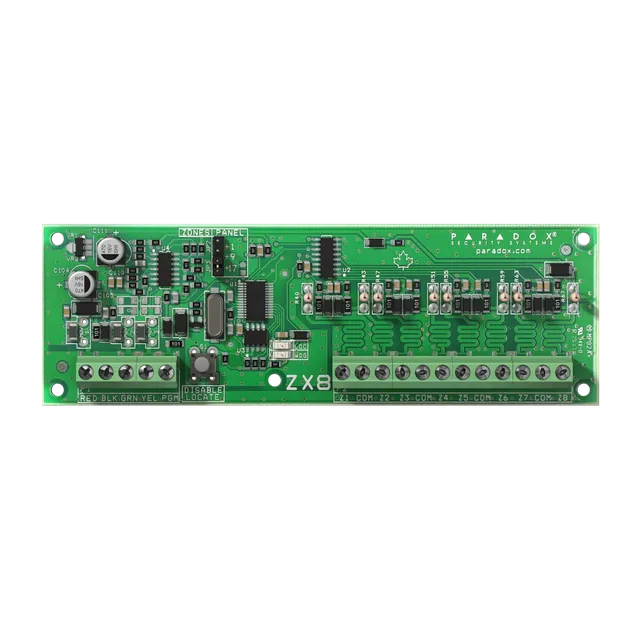

Paradox ZX8 EVO/SP/MG 8 zones + 1 PGM expansion module

The Paradox ZX8 is an 8-zone expansion module designed to expand Paradox security system control panels such as the MG, SP, E series and Digiplex EVO. It lets you add 8 additional hardwired zones to the system and provides one 50 mA PGM (programmable output).

Key features

• Connectivity: Connects to the control panel bus (combus) via a 4-wire connection.

• Power supply: Typically 12–16 VDC.

• Current consumption: Up to 28 mA.

• Operating temperature: -20°C to +50°C.

• Compatibility: Supports MG, SP, E series and Digiplex EVO control panels.

• Zone inputs: 8 hardwired inputs with optional end-of-line resistor (EOL) and tamper support.

• PGM output: One 50 mA PGM output.

• Temperature range: -20°C to +50°C.

• Certifications: EN50131-3 Grade 3, Class II, CE.
