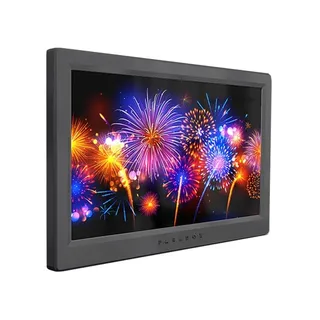

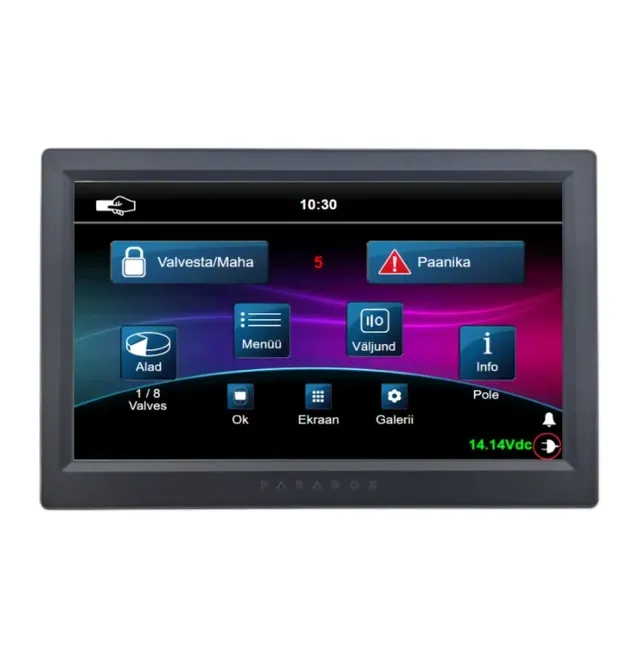

Paradox TM70 keypad (black)

Paradox TM70

Key Features

• Display: 7-inch (17.8 cm) colour LCD touchscreen with 800 × 480 pixel resolution

• Compatibility: Supports Paradox EVO, Spectra and Magellan control panels

• PGM output control: Controls up to 15 PGM outputs

• Zone input: One configurable zone input that can also be used as a temperature sensor

• Temperature display: Shows indoor and outdoor temperature (corresponding sensors required)

• SD card support: 4 GB SD card (2 GB free space) for uploading images and floor plans; also works as a digital photo frame

• Custom labels: Allows custom labels to be assigned to zones, areas, users, doors and outputs

• Language support: Supports multiple languages, including Estonian, Russian and English

• Firmware updates: Firmware can be updated via SD card or remotely via the Paradox Swan system

• Automatic dimming: Screen brightness adjusts automatically to ambient light conditions

• Doorbell function: Built-in doorbell function

Technical Specifications

• Supply voltage: 9–15 VDC

• Current consumption: 250 mA at maximum brightness + 80 mA with buzzer

• Dimensions: 177 × 114 × 15 mm

• Humidity: 5–90%

• Tamper protection: Built-in cover and wall tamper switch
