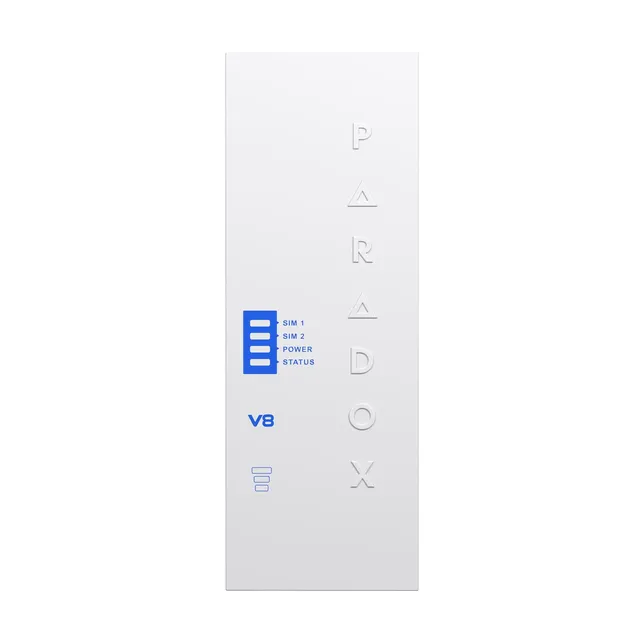

PCS265V8 4G/LTE Communicator

The PCS265V8 is a 4G/LTE communicator module that integrates Paradox control panels with the mobile app, SMS notifications and alarm monitoring station connectivity. It also supports the MQTT protocol for remote management, making it a modern communication solution for security systems.

Key features

• LTE (4G) connectivity works worldwide, except in the USA.

• Dual SIM card slots for primary and backup SIM.

• Full functionality in the BlueEye mobile app (arming/disarming, notifications) plus SMS notifications.

• Remote management and reporting to an alarm monitoring station via the IPC10 receiver (compatible only if the module firmware is V8.xx.xx or earlier) and IPR512/IPRS-7 (firmware 7.xx.xx).

• 128-bit AES data encryption.

• Connection supervision notifies the control panel of connection loss (e.g. a cut cable).

• Serial connection to the control panel (4-wire serial connector).

• Optional Li-ion battery keeps the module running even when the control panel is powered off.

Compatibility

• Compatible with Paradox control panels from the EVO, Spectra SP+, MG5050+ and MG5075 series.

• Not compatible with firmware versions v4.xx and v5.xx.

• Supports MQTT connectivity and works with MQTT solutions such as IP180/IP150+.

Technical specifications at a glance

• Supply voltage: 12 VDC

• Standby current: approx. 60 mA, maximum during LTE transmission: ~300 mA.

• Operating temperature range: -20 °C to +50 °C.

• Dimensions approx. 208 × 75 × 20 mm.

• Certifications include EN 50136-1 / EN 50136-2 Grade 3, EN 50131-10 ATS Category SP5.

Who is it for? If you want a modern security system with mobile app support, LTE communication and remote management, the PCS265V8 is the ideal choice.

Please note: Make sure the control panel firmware version and installation meet your requirements, and that the connection to the IPC10 receiver is configured correctly.
