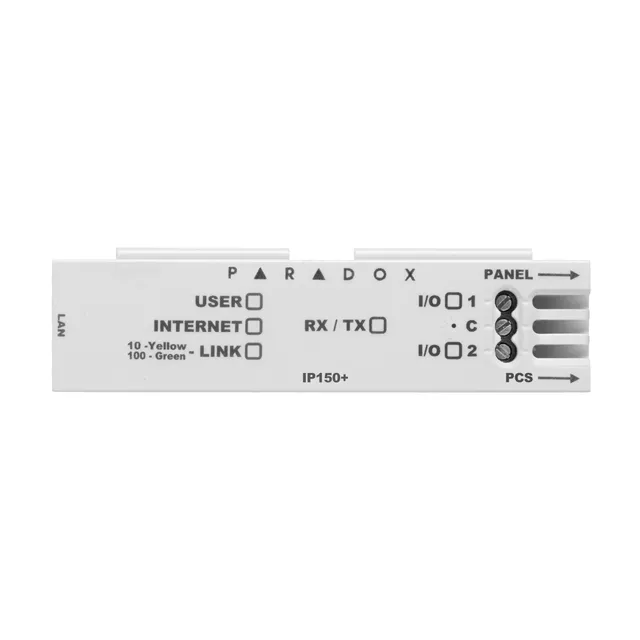

Paradox IP150+MQ Internet Module

Paradox IP150+MQ Internet Module

Overview

IP150+ is an Ethernet-based internet module that enables connection of Paradox control panels to the internet or local network and provides:

• remote access and system settings via web interface or mobile application,

• event transmission to security companies,

• integration of mobile applications and software (e.g. BlueEye, InsiteGold) and email notifications.
  This module meets modern requirements for IP communication in security systems.

Key Features

• Handles Ethernet connection (wired) to local network/internet.

• Default DHCP configuration, but option to set static IP address.

• Module can be remotely controlled and its software updated remotely.

• Supports SSL (secure email sending) and encrypted connection.

• Compatible with multiple Paradox control panels: series such as EVO, Spectra SP/SP+, Magellan MG+ etc.

Compatibility and Limitations

• Module is compatible with control panels manufactured after 2012 or those with required firmware.

• Updated version (IP150+MQ) works with MQTT protocol, but comes with additional requirements: only with IPC10 receiver, only with BlueEye application (InsiteGold is not compatible with it).

• Static IP address support is listed in the module, but in practice you should monitor the module firmware version and support services.

IP150 WEB guide

Installation guide IP150MQTT

Grade 3 certificate
