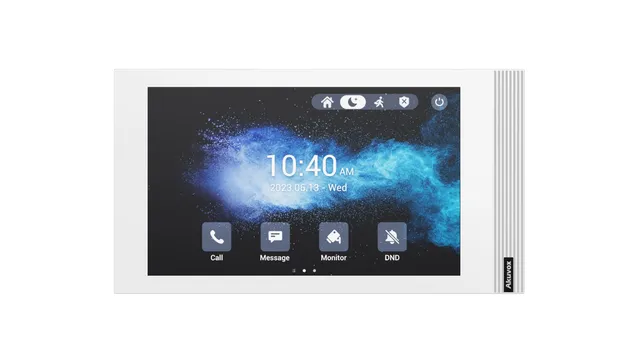

Akuvox S562-S intercom indoor monitor, 7", white

Touchscreen Intercom Indoor Monitor, White

The Akuvox S562S-S is a Linux-based indoor monitor that enables audio and video calls with intercom door stations.
The device features a 7-inch capacitive touchscreen with a power-saving mode.

The screen supports two-way audio communication with other networked devices.
SIP compatibility allows integration with SIP-enabled telephone systems (PBX).

It can be powered either via PoE or from an external power supply.

The device can be surface-mounted without a separate flush-mounted back box.

Its compact design and clear display also make it suitable for locations with limited installation space.

The device can be surface-mounted on a wall or used on a desk with a dedicated desktop bracket.

Suitable for apartments, private houses, offices and other buildings that require an intercom solution.

Monitor specifications:

• Material: Plastic
• RAM / ROM: 128MB / 128MB
• Display: 7-inch TFT LCD, 1024x600 resolution
• Brightness: 250 cd/m²
• Contrast: 600:1
• Touchscreen
• LAN ports: 2xRJ45, 10/100Mbps adaptive
• Akuvox Cloud: supported
• Relay output: 1
• Doorbell input: 1
• Input/output: 8
• RS485
• POE: 802.3af Power-over-Ethernet
• 12V DC connector (when POE is not used)
• Installation: surface-mounted
• Dimensions: 216.4 x 118.8 x 21.7mm

Integration with the AJAX alarm system. Benefits of the integration: Arm and disarm the system directly from the monitor Manage various devices and monitor them in real time via the monitor View notifications and alarms directly on the monitor The setup process is relatively simple Thanks to the integration of Akuvox and Ajax systems, everyday management of intercom and security systems is now much simpler and faster. Package contents: Monitor, surface-mount bracket

Datasheet: Akuvox S562-S Datasheet_V2.0

Manufacturer's website: S562 - Akuvox
