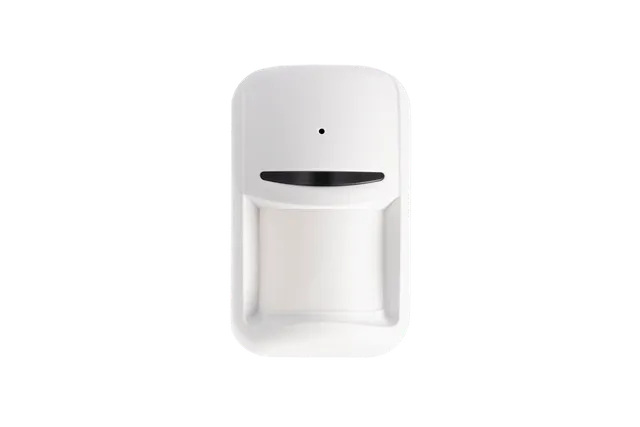

U-PROX PIR COMBI motion and glass-break detector, white

U-PROX PIR COMBI

U‑PROX PIR Combi is a multi-function wireless motion detector and glass break detector designed for indoor use with the U‑PROX security system. The device combines PIR motion detection with acoustic glass break detection, providing reliable protection of key entry points such as windows and glass doors. With pet-immune settings, long battery life and secure two-way radio communication, the PIR Combi ensures a low risk of false alarms and a fast response to security incidents.

Technical specifications

Parameter	Value / description
Device	U‑PROX PIR Combi – wireless motion and glass break detector
Functions	Motion detection (PIR), acoustic glass break detection
PIR max. detection range	up to 12 m
PIR detection angle	88°
PIR target speed	0.3 … 3 m/s
White light immunity (PIR)	>6500 Lux
Pet immunity	Immune to pets up to 20 kg
Glass break max. detection range	up to 8 m
Glass break detection angle	120°
Glass size range	0.5 × 0.5 … 3.0 × 3.0 m
Glass thickness	2 … 8 mm
Radio frequency	ISM band: 868.0 … 868.6 MHz (EU/UA); 916.5 … 917 MHz (AU)
Radio range	up to ~4800 m in open space (line of sight)
Communication security	Secure two-way radio communication, tamper detection, 256-bit encryption
Power supply	3 V (CR123A lithium battery, included)
Battery life	up to ~5 years
Operating temperature	–10 °C … +55 °C
Permissible humidity	up to 75 %
Environmental class	Class II (EN 50131‑1)
Security grade	Grade 2
Dimensions (device)	90 × 60 × 34.35 mm
Dimensions with mounting plate	90 × 60 × 41.6 mm (with corner or wall bracket)
Weight	~150 g
Package contents	PIR Combi detector, CR123A battery, wall bracket, corner bracket, mounting kit, manual
Housing colours	White or black
Warranty	2 years (battery not covered by warranty)
