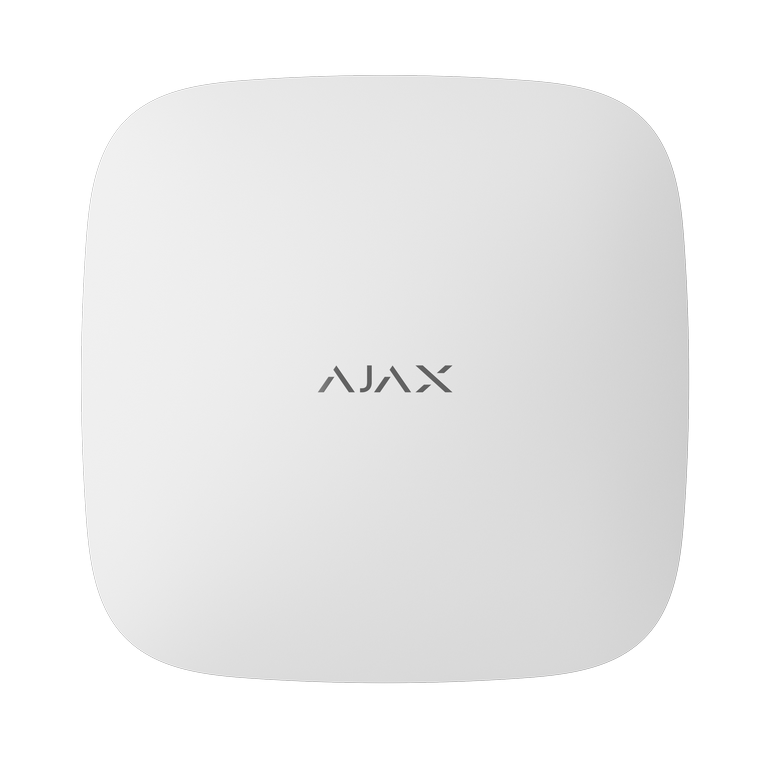

AJAX Hub2 Plus

• Control panel supporting up to 200 wireless connected devices, including up to 100 IP cameras or DVRs
• Supports up to 200 users, 25 guard zones and 64 automatic scenarios, enabling complex security solutions.

Communication and Network Connections

• Built-in Ethernet, Wi‑Fi (802.11 b/g/n) and two SIM cards (2G, 3G, 4G LTE) ensure multiple connection compatibility
• Automatic switching between SIM cards (<4 minutes) and fast GNSS switching (2G/3G/4G)
• Frequency hopping and two-way AES encryption ensure secure Jeweller and Wings communication (alarm/signal requests and photos).

Real-time Security and Automation

• Alarm signal reaches user or security company in less than 0.15 seconds
• Supports relays such as lighting, doors, leak protection systems etc. – scenarios can be triggered based on alarms, schedule or security mode changes

Power Supply

• Power source 110–240 V, typical consumption up to 10 W
• Built-in lithium battery (3 Ah) enables up to 15 hours of offline operation (SIM free)

Physical Properties and Installation

• Dimensions: 163 × 163 × 36 mm, weight approximately 351 g
• Installed indoors, mounted on SmartBracket base – tamper sensor alerts on removal or opening
• Operating temperature range –10 °C…+40 °C

Tamper Protection and Software Security

• Detects jamming and sabotage attempts and initiates automatic frequency hopping
• OS Malevich operating system with automatic OTA updates, featuring strong cybersecurity profile
• Owner or security company receives alert within 60 seconds after connection loss.

For Whom and Why?

• Larger properties, business premises or multi-building territories – for large device coverage and user needs.
• Complete multi-connection backup solution against internet outages or disrupted GSM conditions.
• Advanced automation – control of lighting, doors, leak protection and more using scenarios.

Installation and Management

• Installed indoors, using SmartBracket mounting plate – real-time setup with QR code in Ajax app
• OS Malevich real-time system supports automatic software updates over-the-air and operates at cybersecurity level
• Integrates with security companies via Contact ID and SIA

Summary

• Hub 2 Plus: supports up to 200 devices, 200 users, 64 scenarios, Ethernet + Wi-Fi + 2 SIM cards, photo verification support, up to 2000 m communication range.
