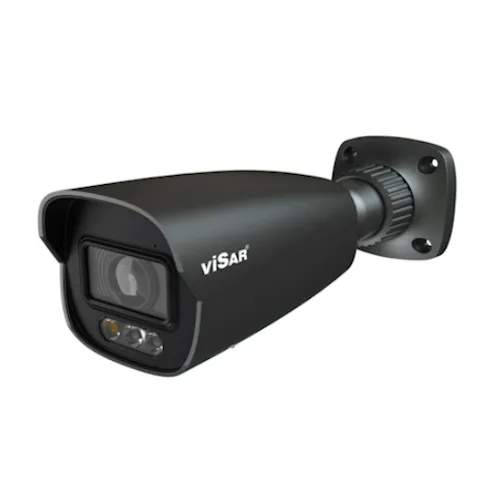

Visar VSC IPT6BL-ALMZ 6MP IP Bullet Camera, 2.8–12mm, Dual Light

Visar VSC IPT6BL-ALMZ 6MP IP Bullet Camera, 2.8–12mm, Dual Light

6MP IP bullet camera with 2.8–12mm motorized lens, dual light up to 40m and sound and light alarm.

Camera

Image sensor: 1/2.39-inch CMOS

Resolution: 3200 × 1800

Electronic shutter: 1/3 s to 1/100000 s

Fixed iris

Minimum illumination: colour 0.02 lux at F1.6 with AGC on; black and white 0 lux with illumination

Motorized lens

Day/night mode: automatic, day, night or schedule

120 dB WDR, BLC and HLC

Installation angle adjustment: pan 0°–360°, tilt 0°–80°, rotation 0°–360°

Lens

Focal length: 2.8–12 mm at F1.6

Viewing angle: horizontal 108°–36°, vertical 57°–20°, diagonal 129°–42°

Image and video

Digital noise reduction

Image settings include ROI, brightness, contrast, sharpness, rotation, mirror, WDR and noise reduction

H.265+, H.265, H.264+, H.264 and MJPEG encoding

Resolutions: 6MP, 4MP, 2K, 1080p, 720p, D1, VGA, 640 × 360, CIF and 480 × 240

Main stream up to 6MP at 30 fps (60 Hz) or 25 fps (50 Hz)

Bit rate: 64 Kbps to 8 Mbps, VBR or CBR

Audio

1-channel audio input, built-in microphone, 1-channel audio output and built-in speaker

G.711 A/U audio compression

Network and storage

RJ45 interface

Remote monitoring via web, NVR, NVMS2.X and mobile app

Supports up to 6 simultaneous users

Protocols include UDP, DHCP, NTP, RTSP, RTP, RTMP, IPv4/6, HTTP, FTP, SNMP and 802.1x

MicroSD card slot up to 256 GB and remote network storage

Analytics and alarms

Line crossing, area intrusion with object classification, abandoned or missing object detection

Alarms: motion detection, SMD, SD card error/full, IP conflict, video anomaly, audio alarm and light alarm

Security features include video, firmware and settings encryption, IP filtering, login lockout, 802.1x and HTTP authentication

Lighting and general

IR range: 30–40 m

White light range: 30–40 m

PoE: IEEE802.3af

Protection rating: IP66

Power supply: 12 V DC or PoE

Power consumption: less than 11 W

Dimensions: Ø111.5 × 99.6 mm

Weight: approx. 0.604–0.62 kg

Ceiling or wall mounting

Operating conditions: -30 °C to 60 °C, less than 95% RH

Certifications: CE, FCC, RoHS, WEEE, REACH

DORI distance

Detect: 66 m wide / 204 m tele

Observe: 27 m wide / 82 m tele

Recognize: 13 m wide / 41 m tele

Identify: 7 m wide / 20 m tele
