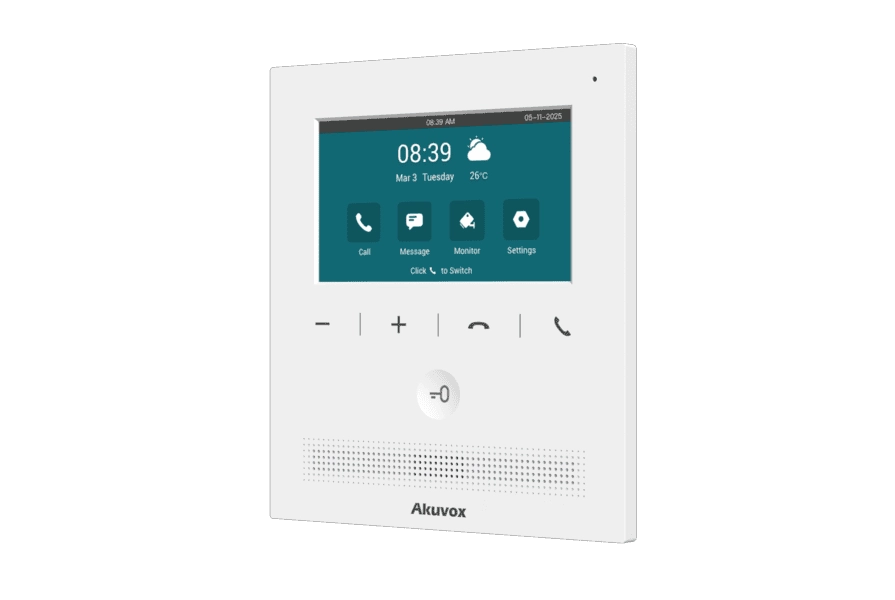

Akuvox C310S – compact IP phone indoor monitor, white

Akuvox C310S is a compact SIP protocol-based IP phone indoor monitor that allows you to answer calls from the intercom system, communicate with visitors, and unlock the door.
The device is equipped with a 4.3-inch display and is well suited for apartments, houses, offices and other smaller rooms. The C310S also works as an additional indoor monitor in facilities where multiple answer points are used with a single intercom system.

Two-way calling

The built-in microphone and speaker allow you to communicate directly with visitors through the indoor monitor. Akuvox C310S supports high-quality two-way audio and allows the user to answer calls from the call panel and control door unlock.

The monitor has five touch-sensitive buttons that are used to manage calls and control the device.

IP camera viewing

Akuvox C310S supports IP camera image viewing. This gives the user the ability to monitor entrance or other surveillance camera-covered areas directly from the indoor monitor display.

The function is well suited for facilities where IP video surveillance is used alongside the intercom system and it is desired to view important cameras from the same device.

Notification display

Akuvox C310S supports the reception of system and community notifications. This function can be used, for example, in apartment buildings or other managed buildings to transmit information to residents or users.

PoE or 12 V power supply

The monitor can be powered in two ways:

• Via PoE IEEE 802.3af;
• With an external 12 V DC power supply.

When using PoE, network connection and device power are provided through a single Ethernet cable, which simplifies installation.

Compact wall-mounted installation

Akuvox C310S is designed for wall-mounted installation. The compact housing and restrained design fit well in living spaces and small offices.

Main features

• 4.3″ display
• display resolution 480 × 272
• two-way calling
• door unlock control
• SIP protocol support
• possibility of interfacing with SIP PBX systems
• IP camera viewing
• system and community notification support
• 5 touch-sensitive control buttons
• 1 × RJ45 Ethernet 10/100 Mbps
• PoE IEEE 802.3af
• 12 V DC power option
• 1 doorbell input
• built-in microphone
• 2 W speaker
• wall-mounted installation
• operating temperature –10 °C to +45 °C
• dimensions 135 × 155 × 19 mm

Akuvox C310S is suitable for a user who needs a simple and compact indoor monitor for receiving phone calls, unlocking the door and viewing IP cameras.

Product sheet: Akuvox C310S Datasheet
