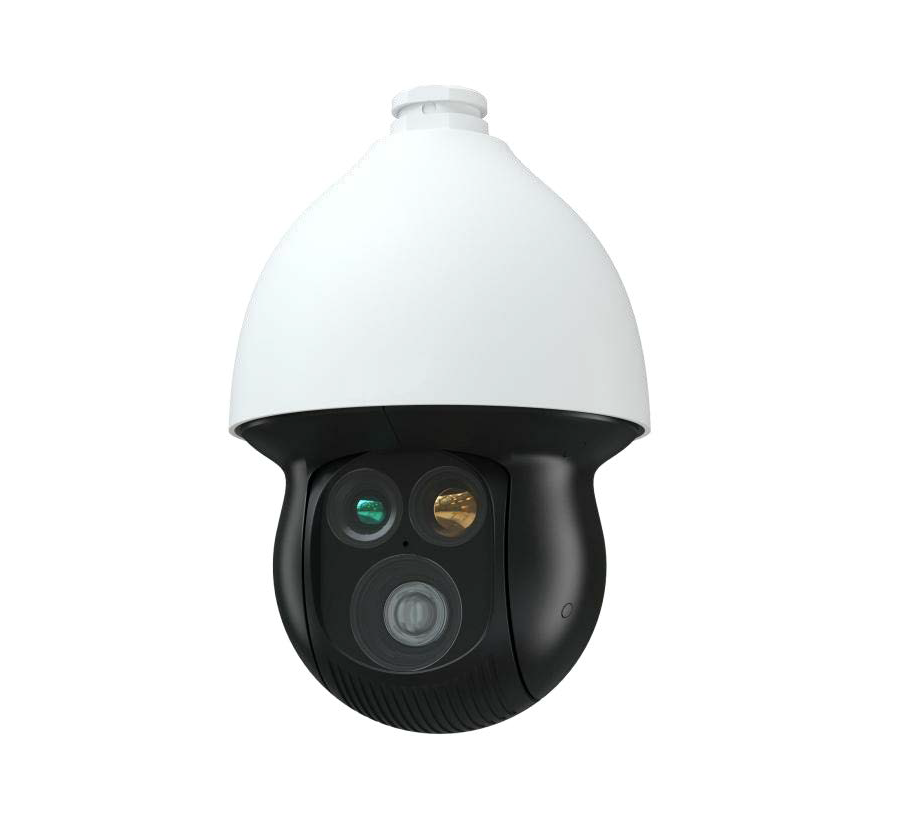

Visar VSTh IPT4SD32IR300 Thermal Pan-Tilt Camera, 4MP, IR 300m

VSTh IPT4SD32IR300 thermal speed dome camera (Speed Dome)

VSTh IPT4SD32IR300 is a top-class combined thermal + speed dome camera that combines high quality and precision in various surveillance and security systems. The product is ideal for both night and day surveillance, providing excellent results even in complex environments.

Key Features:

• Thermal camera module:

  • Detector type: 12µm 384×288 Uncooled infrared focal plane detector

  • Spectral response range: 8 μm – 14 μm

  • NETD: ≤35mK (@25°C, F#=1.0)

  • Fixed IRIS type lens

  • Lens focal length: 25mm @ F1.0

  • Field of view (H×V): 10.5°×7.9°

• Optical camera module:

  • Image sensor: 1/2.8″ CMOS

  • Maximum resolution: 2560×1440

  • Electronic shutter: 50Hz: 1/25s-1/25,000; 60Hz: 1/30s-1/30,000s

  • Minimum light sensitivity:

    • Color: 0.01 Lux @(F1.65, AGC ON)

    • Black and white: 0.002 Lux @(F1.65, AGC ON)

    • 0 Lux with infrared

  • Focal length: f=4.8-154mm, 32x optical zoom

  • Field of view (H×V): Horizontal: 59.38°~ 2.28°; Vertical: 35.74°~ 1.29°; Diagonal: 66.28°~ 2.61°

  • Aperture range: F1.65-F4.70 (W-T)

  • Focus: Automatic/Manual

  • Zoom speed: approximately 4.4 seconds

• Video codec and recording:

  • H.265+/H.265/H.264+/H.264/MJPEG video compression

  • Bit rate: 128 Kbps ~ 8 Mbps

  • Optical resolution: 2560×1440, 1920×1080, 1280×960, 1280×720

  • Thermal resolution: 384×288

  • Recording: Built-in micro SD card slot (up to 256GB)

• Remote control and connectivity:

  • Web browser, NVMS/NVR, mobile application

  • Allows up to 10 simultaneous user monitoring

  • Allows real-time transmission in multiple streams

• Smart alarm and analytics:

  • Optical: area intrusion, entry, exit, line crossing, object counting (person, motor vehicle, non-motor vehicle)

  • Thermal: fire detection, temperature anomaly alarm, area intrusion, line crossing (person, motor vehicle)

  • Supports AI functions simultaneously for both optical and thermal channels

• Network protocols and interfaces:

  • UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, RTMP, SNMP, 802.1x, UPnP, HTTPS, HTTP POST, P2P, QoS

  • ONVIF interface

• Operating conditions:

  • Operating environment: -30°C ~ 60°C; 95%

  • Power supply: AC24V/DC24V, 2500mA or PoE++ (IEEE802.3.bt)

  • Average power consumption: 24W, maximum 35W (including IR 12W)

  • IP66 waterproof

• General information:

  • Installation: wall and ceiling

  • Certifications: CE, FCC

  • Dimensions: 302 × 197 mm

  • Weight (approximately): 3 kg
