Ajax CurtainCam Outdoor HighMount (PhOD) smart outdoor perimeter motion sensor with photo verification
541,88 € (671,93 € incl. VAT)
Laost otsas
Don't Miss Top Accessories
Description

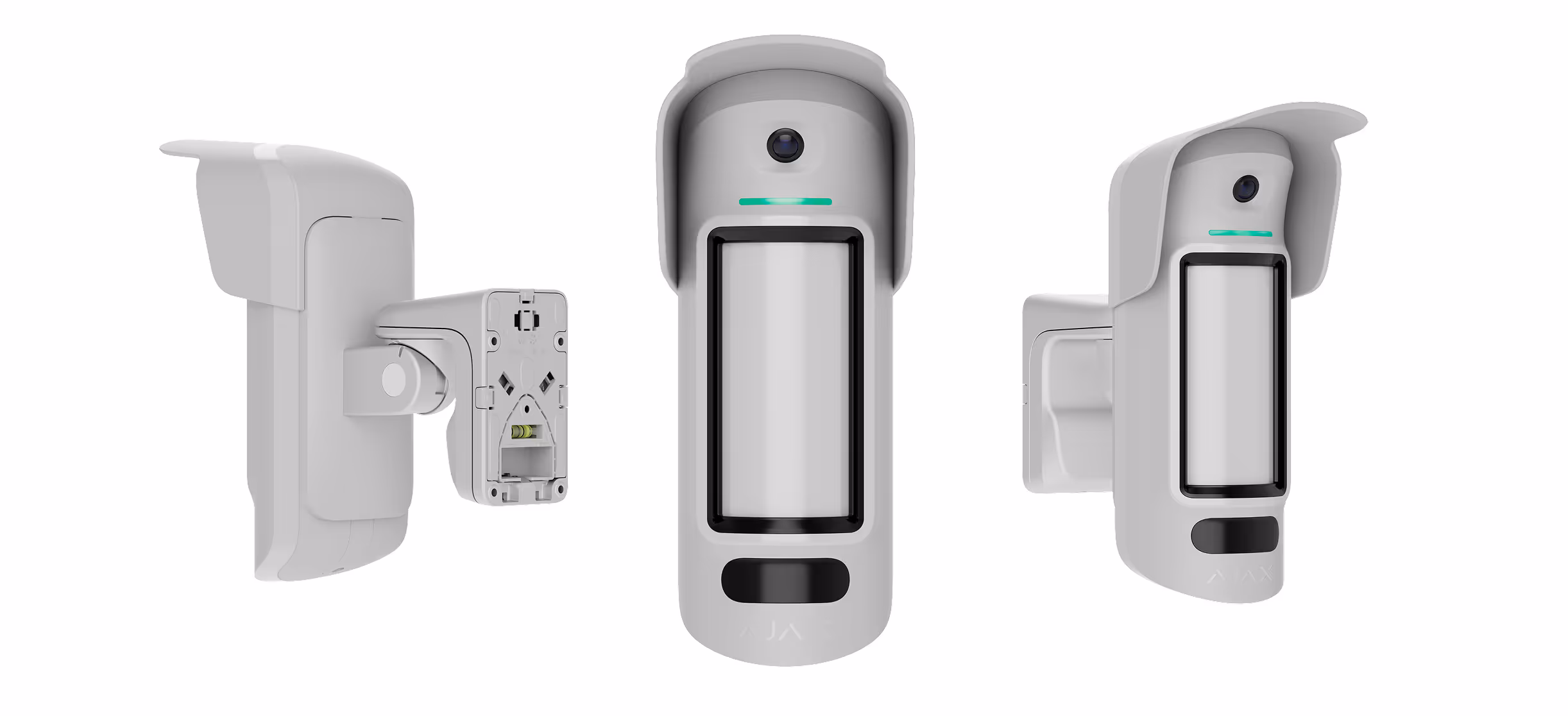

Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller
Smart outdoor perimeter motion sensor with photo verification
Ajax CurtainCam Outdoor HighMount (PhOD) Jeweller is a professional wireless curtain-type outdoor motion sensor designed to protect narrow and long areas. Thanks to two PIR sensors, K-band microwave radar and built-in camera, the device detects intruders with high accuracy and sends photos immediately upon alarm, allowing quick situation assessment.
The sensor is installed at 2–4 meters high, making it ideal for protecting building facades, windows, gates, balconies, passages, fences and industrial facilities. The narrow detection area reduces false alarms and allows precise monitoring of the desired area.
Ajax’s patented Jeweller and Wings radio communication ensure reliable connection even in challenging conditions and enable fast photo transmission to the user and security center.
Key advantages
- Curtain-type motion detection for protecting narrow outdoor areas
- Built-in camera with photo verification (Photo by Alarm, Photo on Demand, Photo by Scenario)
- Combination of two PIR sensors and K-band microwave radar reduces false alarms
- Installation height 2–4 meters – harder to access and better view
- Detection range up to 15 meters
- IR lighting for quality night photos
- Weather-resistant IP55 housing
- Tamper, masking and manipulation protection
- Up to 1700 m radio range in open area
- Up to 3 years battery life
- Easy setup via Ajax PRO app
Technical specifications
| Parameter | Value |
|---|---|
| Product type | Wireless curtain-type outdoor motion sensor with camera |
| Sensors | 2 × PIR + 1 × K-band microwave radar |
| Detection range | Up to 15 m |
| Installation height | 2–4 m |
| Motion sensor viewing angle | 7° horizontal, 78° vertical |
| Camera viewing angle | 120° horizontal, 92° vertical |
| Photo functions | Photo by Alarm, Photo on Demand (PhOD), Photo by Scenario |
| Number of photos | 1–5 photos per alarm |
| Photo resolution | 320 × 240 to 640 × 480 px |
| Photo transmission time | Under 9 seconds |
| Night mode | Built-in IR lighting |
| Radio communication | Jeweller + Wings |
| Radio range | Up to 1700 m in open area |
| Tamper protection | Tamper, masking detection, magnetometer |
| Protection class | IP55 |
| Operating temperature | –25 °C to +60 °C |
| Humidity | Up to 95% |
| Power supply | 6 × CR123A batteries (included) |
| Battery life | Up to 3 years |
| External power | 12–24 V DC (optional) |
| Dimensions (with mount) | 275 × 137 × 98 mm |
| Dimensions (without mount) | 234 × 137 × 98 mm |
| Weight | 1063 g (with mount), 620 g (without mount) |
| Certificate | EN 50131 Grade 2 |
Suitable applications
- Building facades
- Windows and glass walls
- Gates and fences
- Balconies and terraces
- Narrow passages
- Driveways
- Warehouses and industrial facilities
- Business building external perimeter
CurtainCam Outdoor HighMount (PhOD) Jeweller combines precise motion detection with instant photo verification, allowing you to distinguish real threats from false alarms and respond quickly before an intruder reaches the building. This makes the device an excellent solution for protecting the external perimeter of professional security systems.
