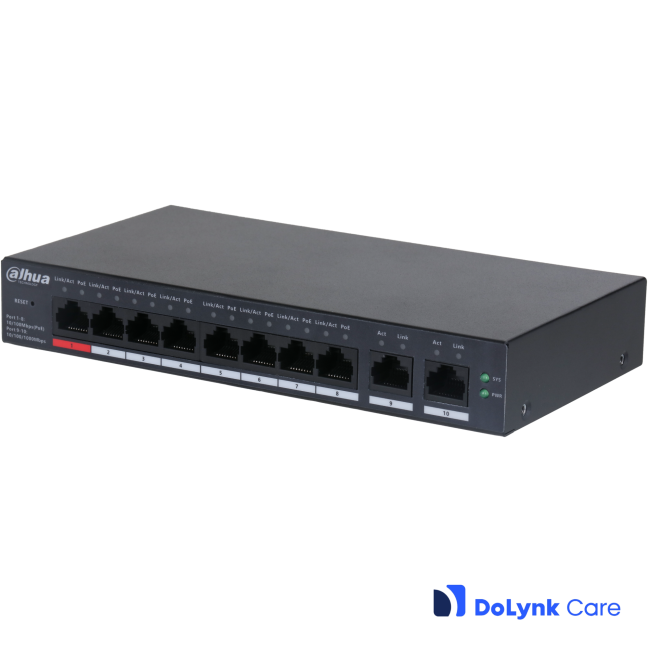

Dahua CS4010-8ET-110 DoLynk Care Manageable 8*POE switch

10 port Dahua cloud-managed 110W 8 PoE port switch

8*100Mbps + 2*Gbps 110W

• Ports – 1-8 RJ-45 10/100 Mbps (PoE); Ports 9, 10 RJ-45 10/100/1000 Mbps (uplink)
• Switching Capacity 5.6 Gbps, Packet Forwarding Rate 4.17 Mpps, Packet Buffer Size 4 Mbit, MTBF 150 years
• Layer 2
• PoE standards IEEE802.3af; IEEE802.3at;
• Hi-PoE; IEEE802.3bt,
• Ports 1 <90W, Ports 2-8 <30W, up to a total of 110W per device.
• For PoE outputs, the supported cable length is up to 250m, in which case the bandwidth drops to 10Mbps, configurable from the menu.
• PoE Pin Layout PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• Power supply 54 VDC, 2.22 A adaptor supplied
• Dimensions 190 mm × 106 mm × 30 mm, weight 0.5kg

Cloud-based management
Devices can be managed by DoLynk Care mobile app, which allows real-time monitoring of the network. The app displays the status of the devices, provides real-time fault alerts and sends notifications to the user when problems occur.

Network topology management
Supports LLDP protocol and can generate and display network topology. This allows to quickly identify problems and perform remote management and maintenance of equipment.

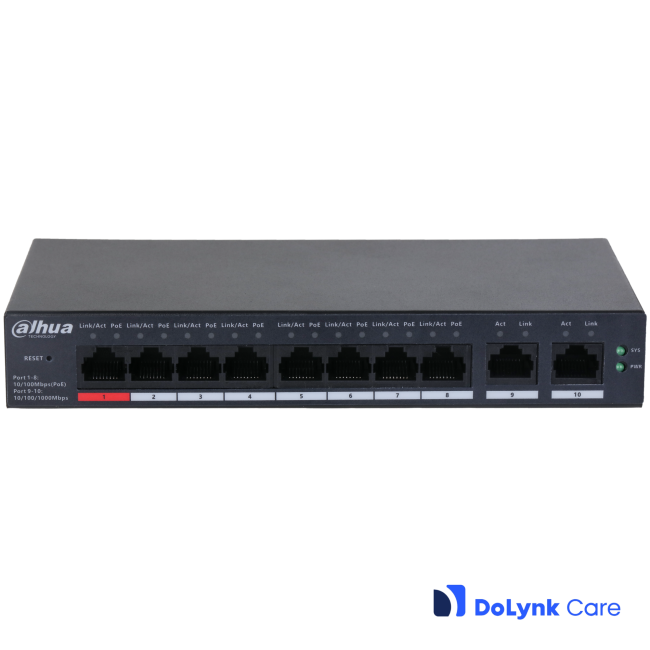

BT 90W (red port)
Red network ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power of up to 90 W per port. Suitable for powering high-power devices.

Tooteleht: CS4010-8ET-110_datasheet_20230807

DoLynk Care
