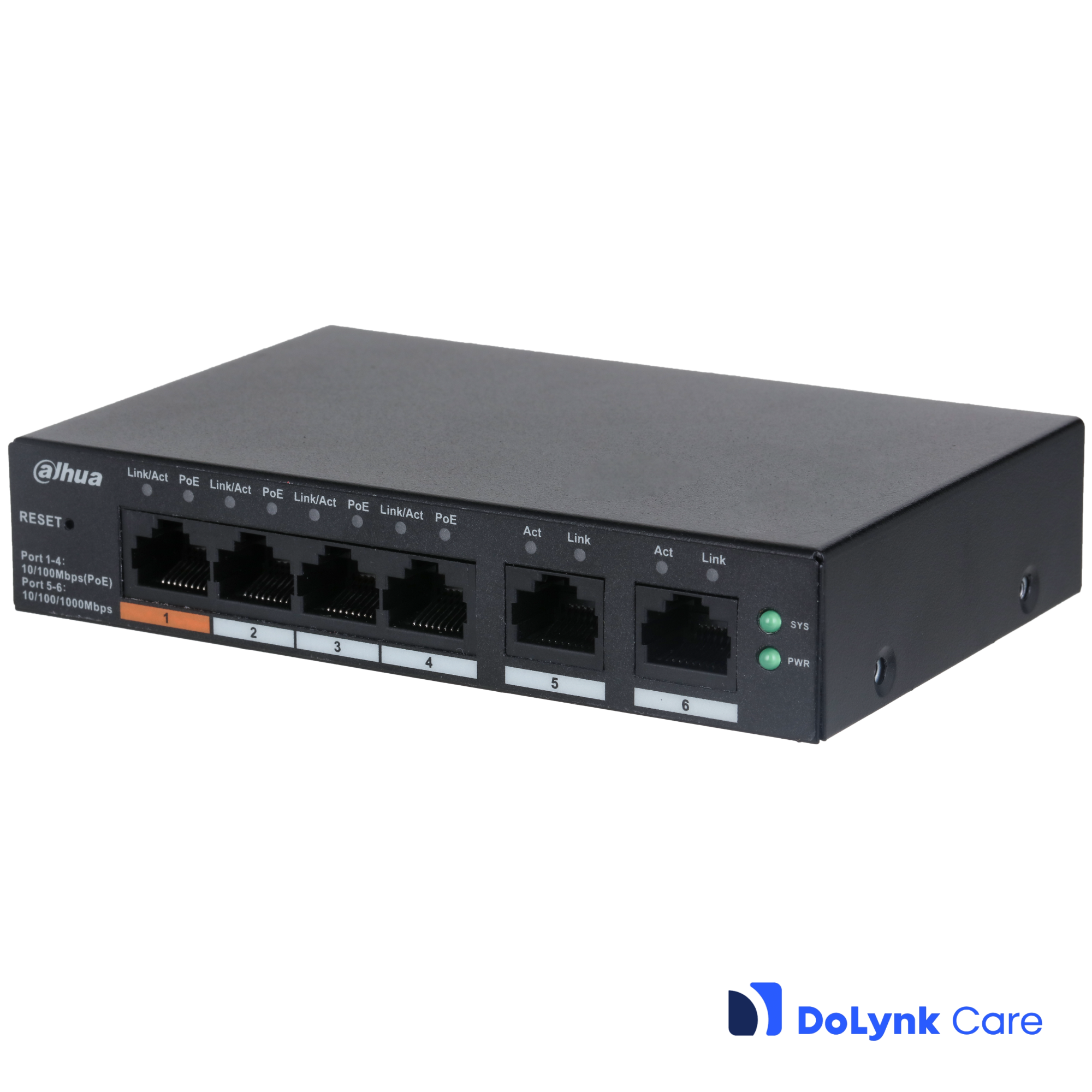

Dahua CS4006-4ET-60 DoLynk Care manageable 4*POE switch

6 port Dahua cloud managed 60W 4 PoE port switch with 4 ports

4*Mbps PoE + 2*Gbps – 60W

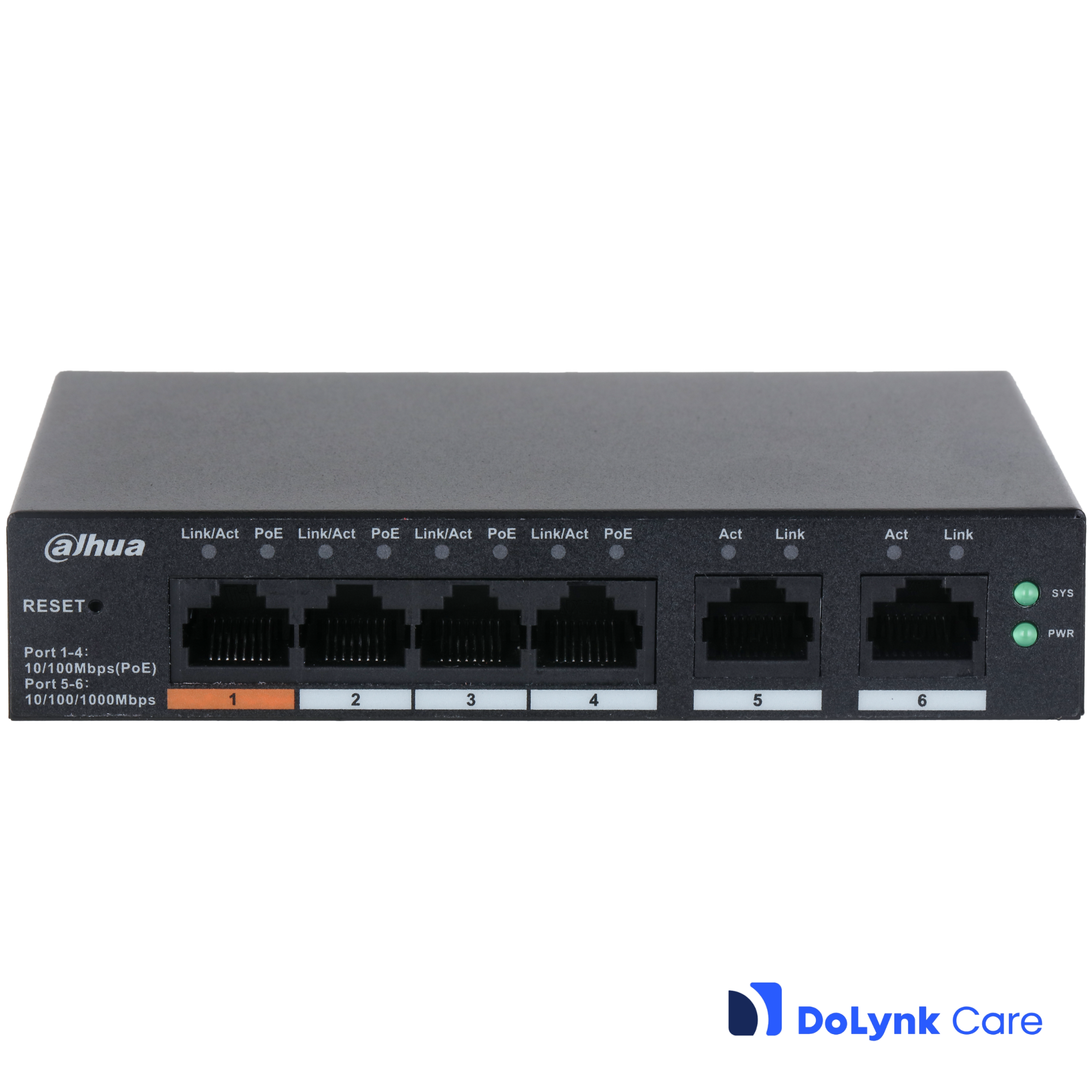

• Ports 1-4 RJ-45 10/100 Mbps (PoE); Ports 5, 6 RJ-45 10/100/1000 Mbps (uplink)
• Managed via a standard web interface (DHCP) or via the DoLynk Care app.
• Layer 2
• PoE standards IEEE802.3af; IEEE802.3at; Hi-PoE
• Ports 1 <60W, Ports 2-4 <30W, up to a total of 60W per device.
• For PoE outputs, the supported cable length is up to 250m, in which case the bandwidth drops to 10Mbps, configurable from the menu.
• PoE Pin Layout PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

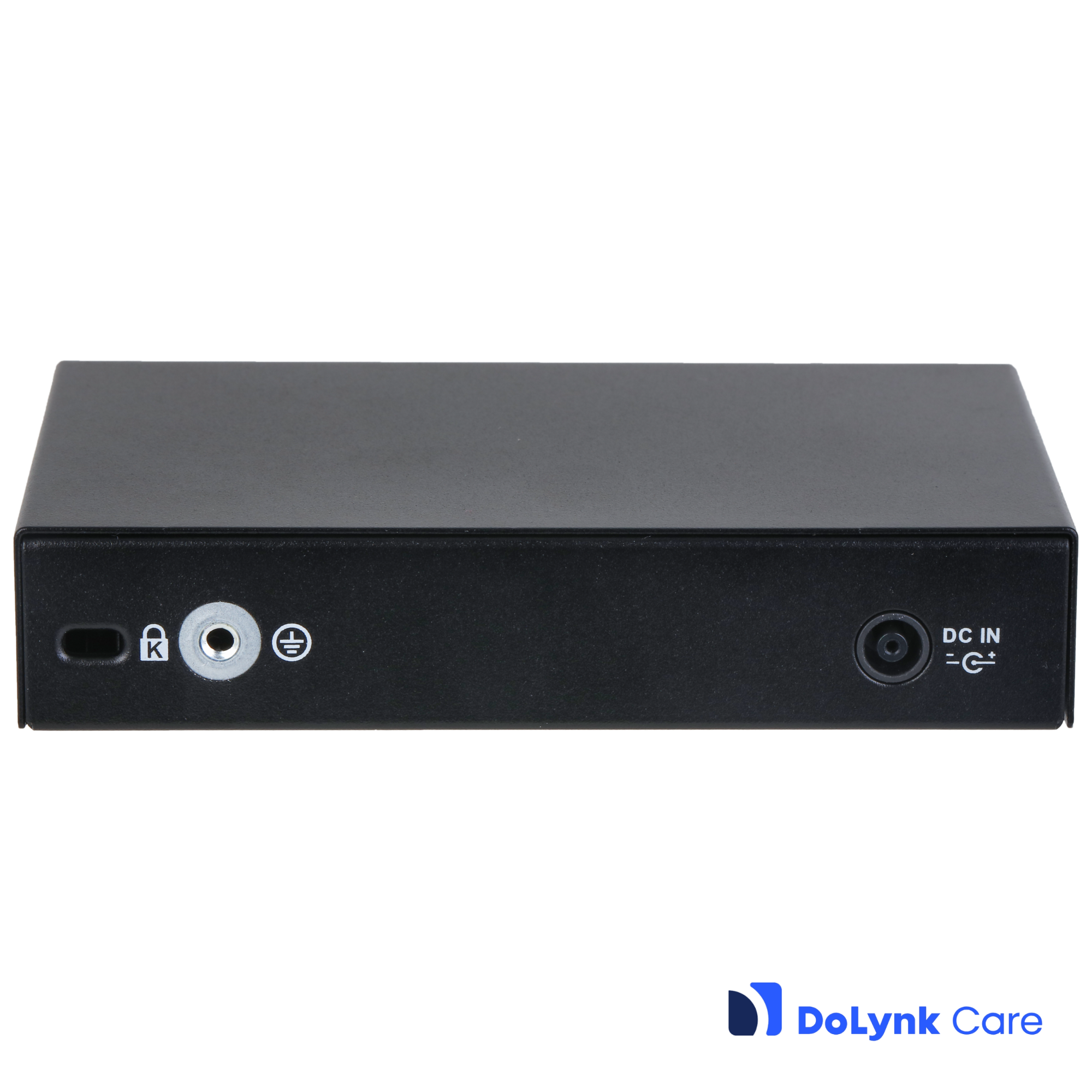

• Power supply 53 VDC, 1.226 A adaptor supplied
• Dimensions 130 mm × 90 mm × 26 mm, weight 0.28kg

Cloud-based management
Devices can be managed by DoLynk Care mobile app, which allows real-time monitoring of the network. The app displays the status of the devices, provides real-time fault alerts and sends notifications to the user when problems occur.

Network topology management
Supports LLDP protocol and can generate and display network topology. This allows to quickly identify problems and perform remote management and maintenance of equipment.

Hi-PoE 60 W (orange port)
In addition to the IEEE802.3af and IEEE802.3at standards, the orange port supports up to 60 W of power output, enabling powering of high-power devices.

Product sheet: CS4006-4ET-60_datasheet_20230807
