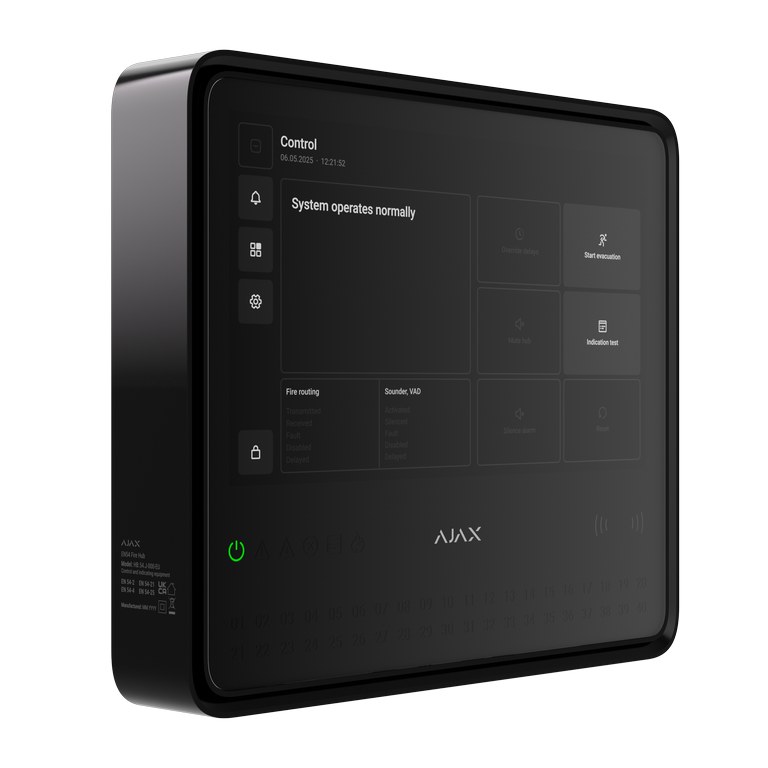

Ajax EN54 Fire Hub central device

Functions and capabilities

• Touch-sensitive 10.1-inch display interface with real-time system status and alarm signals

• Built-in network communication: Ethernet, Wi-Fi and two SIM slots (2G/3G/LTE) to connect to the Ajax mobile app and monitoring centres without the need for additional devices.

• Device management capability: supports up to 200 addressable devices and 40 fire zones.

• Wireless technology: uses Ajax’s established Jeweller, Wings and TurboWings protocols – working radius up to 1.8 km and coverage extension with EN54 Fire ReX extenders – up to 35 km².

• Power supply and reliability: supports 240 V power supply and EN54-compliant hot-swappable lithium battery solutions that maintain internal operation for up to 72 hours during power outages.

Compliance and certificates

• Fire safety standard: complies with several parts of EN54 (e.g. EN54-2, -3, -5, -7, -25, etc.), which means full suitability for commercial use.

• Security and compatibility: compatible with EN 50131 Class 2 input and output monitoring systems; supports integrated operation with the Ajax intrusion alarm ecosystem.

Summary table
