12U RACK cabinet 19″ RWA1266, Pulsar
Availability:
1 in stock
12U x 19″ RACK cabinet, wall mountable, – 600 × 600 mm, Pulsar
159,00 €197,16 € Excl. VATIncl. VAT
1 in stock
Pulsar RWA1266

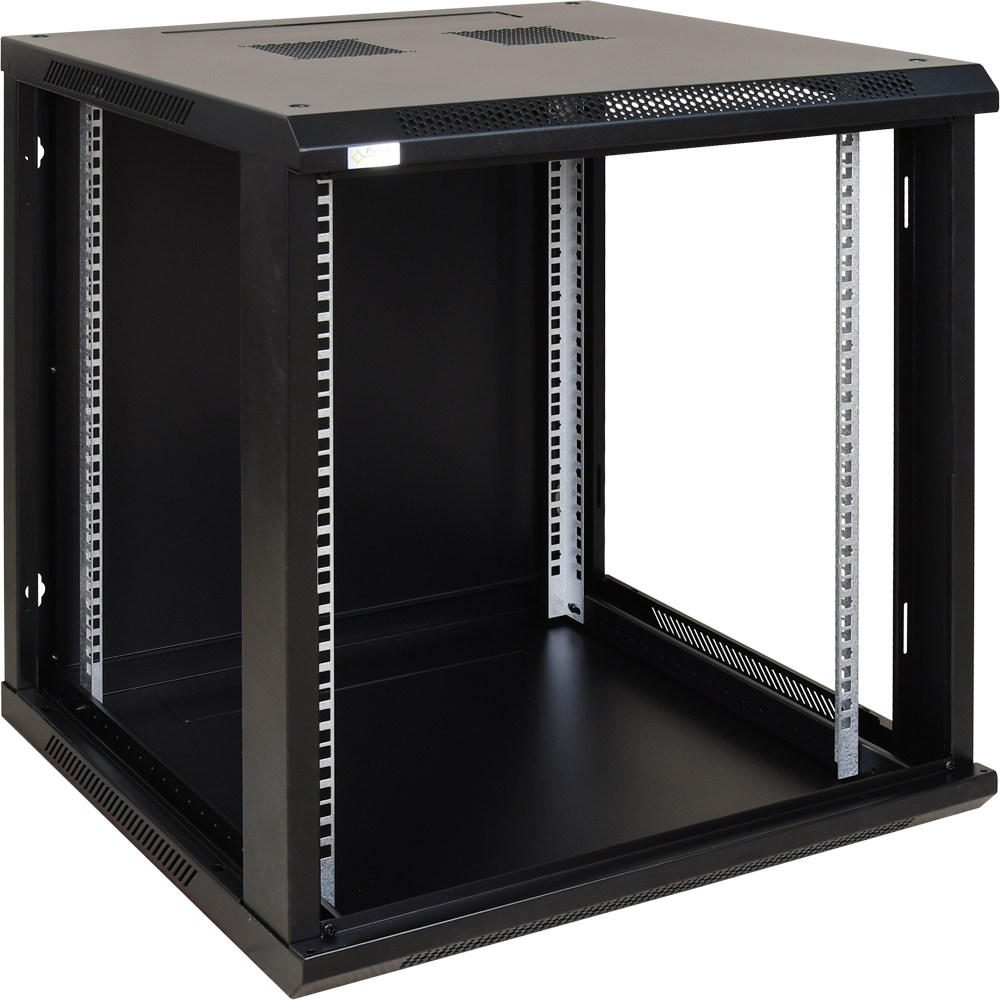

12U RACK cabinet, wall-mounted, 600×600 mm
A high quality and compact RACK cabinet, ideal for a small business or home IT solution. Suitable for aesthetically pleasing and secure installation of 19″ standard sized equipment such as CCTV, LAN, RTV, AC and other network and server equipment, and protection against mechanical damage.
Parameters
| Parameter | Description |
|---|---|
| Place of Origin / Name | 12U RACK cabinet, wall mounted, ready to assemble 600×600 |
| Code / Model | RWA1266 (v.1.1) |
| Application type / Destination | 19″ rack-mount cabinet for CCTV, AC, I&HAS, RTV, LAN and other equipment installation. |
| Rack dimensions / Mounting dimensions | 19″ x 12U |
| External dimensions (L×W×D) | 600 × 636 × 600 mm (±2 mm) |
| Depth “internal” / Internal depth | 447 mm (rack system internal dimension) |
| Type / Type | Wall-mountable, foldable |
| Material / Material | Cold-rolled steel SPCC (1.2 mm / 1.5 mm), colour RAL9004 (black), metallic |
| Uksed / Closing | Front – with lock (RAZ25); side panel – Click (optional lock RAZB16) |
| Protection grade | IP20 |
| Static load / Static load | ~70 kg |
| Guarantee | 2 years |

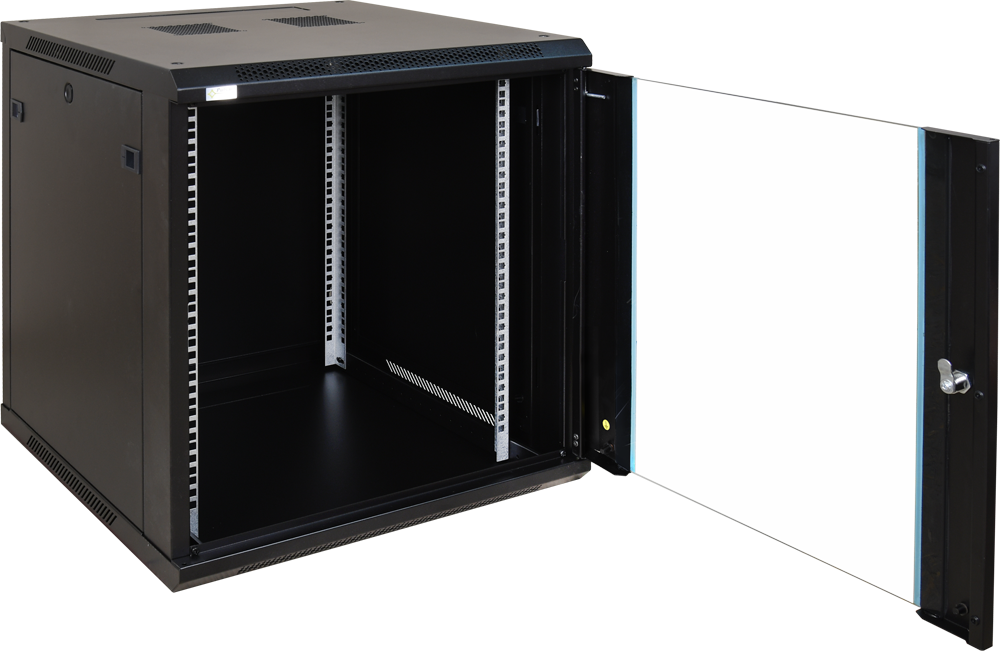

| Features / Notes | Revolving door: can be mounted right or left Ventilation openings in top panel (2 × 105×105 mm) Cable ducts in top and bottom panel Rear panel removable |
| Others | Designed for devices in 19″ standard; forms an aesthetically unified and protected installation |
| Standards / Certification | CE standards (manufacturer’s documentation can support compliance) |
Product sheet: RWA1266
Manufacturer’s website: 12U RACK cabinet, wall mounted, ready-to-assemble 600×600 – RWA1266
